Geeetech

Hi Twidget
Please leave your email address, I'll send it to you.

Hi fpgiovanini
The power supply is not stable, when we used USB port as power, the same problem came out.

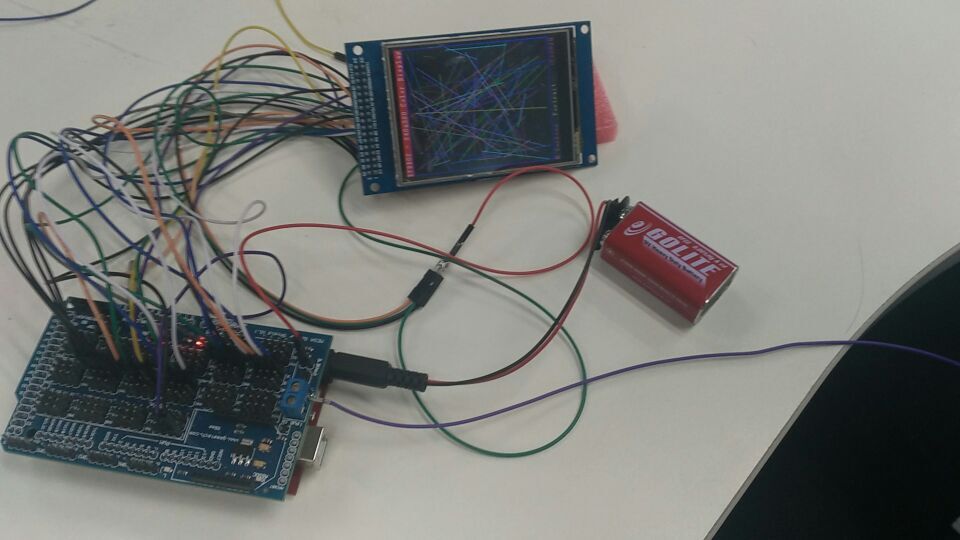

So we used a battery and white lines disappeared. You need to change the power. Sincerely
Harry

Hi buzmal
Hi I have followed the instruction an the Esteps setting was set to 760.00mm, when i turn this down the extruder does run, however when i connect to Repetier-host or try to send through and object to try to print these settings rest and the extruder pulses again.
I'm sorry that estep 100 ...

What is the filament you use and the nozzle's temprature?
Is the problem similiar to yours?
https://docs.google.com/file/d/0B5w3QL5 ... cslist_api
And the solution:
http://www.geeetech.com/forum/viewtopic ... 995#p21205

Glad to hear that, good luck!

Hi
Please leave your email address,
I'll send you one which we are using.

You should download a firmware. Edit and compile on computer, then onnect the board and computer, and burn it into the board.

Hi
It's in a plastic bag and "attached on the bed" before.
And it's indeed too small to find, so we solder it to the wire and paste them on the heat bed now.

Congratulations!
You can reverse the z axis in the software.

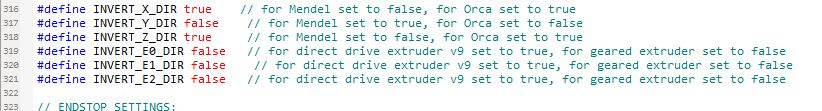

Edit the firmware: change the INVERT_Z_DIR--TRUE to FALSE, or the opposite.

Hi
It seems like the extruder motor run too fast, and too much filament came out.
So you can set the esteps in the LCD screen: Control -> Motion -> Esteps

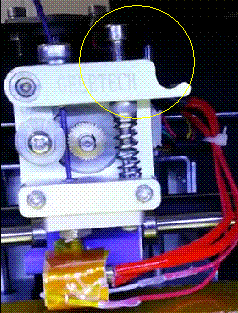

Set it to 95~100, was it much larger than 100 before? Or you can tighten a little the screw.
