Toy wrote:Il est correct car il est un capteur de NO.

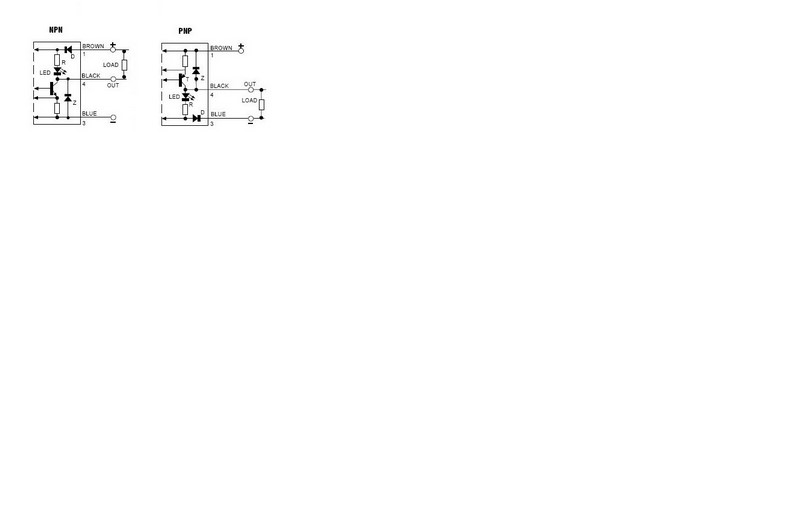

ok, but mine is NPN but it is connected as a PNP on the attached model. Not a problem?

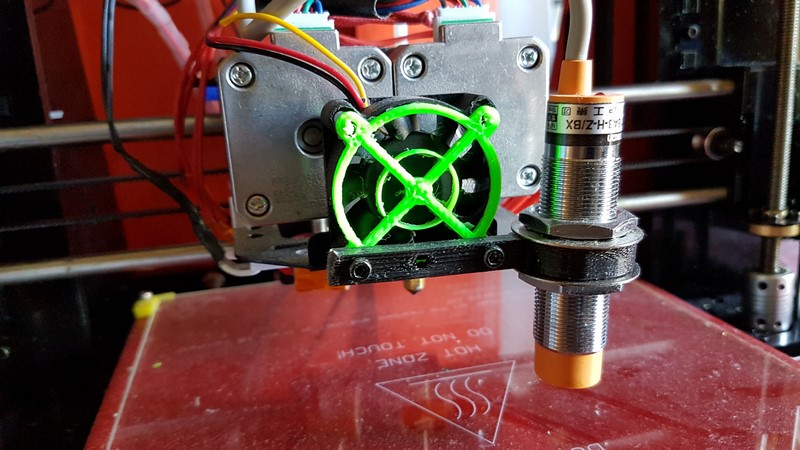

thanks, I'll try. my sensor is NPN NO, it's okay?

maybe stop Z min and using Z max? how to change? thank you

no one? no technician available? Tuesday, it's been a month that I'm out ??? !!!

Pourquoi avez - </font><font>vous dit? vous avez dit "le contact a </font><font>fonctionné avec l'interrupteur avant que </font><font>le capteur" avant, et cela signifie que </font><font>le port Z_min n'a pas de </font><font>problème, non?</font></font>
I don't know, it does not work now from the ...

Cup wrote: Hi,
Where you bought the sensor?The seller didn't give you a user manual??

Hi,
The sensor is not a problem, only 3 cables.

Cup wrote: And can't you plug the sensor connector into the Z_max port?

Maybe if Z min is faulty but I do not know how to test Z min.

but I have already seen these posts, my circuit proposed page 3 is not good? this is exactly the same idea.
How can I test my Z min?

here. how to test otherwise z mini?

how to test otherwise z home?

1
if I change Y with Z , I cannot test Z because I have to test X and Y before and Y cannot work , the Y motor dont stop. so I cannot test Z because I have to unplug .
2
no problem of welding because the contact functioned with the switch before the sensor
