More testing and trying, I feel like single Z Axis Motor is one of the reasons 3D Touch fails intermittently on this design printer, because of the Rocking tolerance in this A20M, sometimes it nails it, sometimes it fails, about 50/50
Can Geetech make an Upgrade to Dual Z Axis ?
i.e
Like this one ...
Search found 14 matches
- Tue Dec 25, 2018 8:24 am
- Forum: Geeetech A20M
- Topic: 3D Touch Sensor:Auto-levelling for Geeetech 3D printer
- Replies: 326
- Views: 816134
- Sat Dec 22, 2018 3:04 pm
- Forum: Geeetech A20M
- Topic: 3D Touch Sensor:Auto-levelling for Geeetech 3D printer
- Replies: 326
- Views: 816134
Re: 3D Touch Sensor:Auto-levelling for Geeetech 3D printer
1, This thread is not specific to the A20M and is in the wrong place (I want to discuss the A20 Series here)
2, Jfkerekes !! I had more luck when I moved the Z Sensor lower where it won't fight with the 3D Touch,
3, I had the Most Luck without the 3D Touch and Manually leveling the Bed
The Sensor ...
2, Jfkerekes !! I had more luck when I moved the Z Sensor lower where it won't fight with the 3D Touch,
3, I had the Most Luck without the 3D Touch and Manually leveling the Bed
The Sensor ...
- Sat Dec 15, 2018 10:47 am
- Forum: Geeetech A20M
- Topic: A20M Fan Cover
- Replies: 1
- Views: 5040

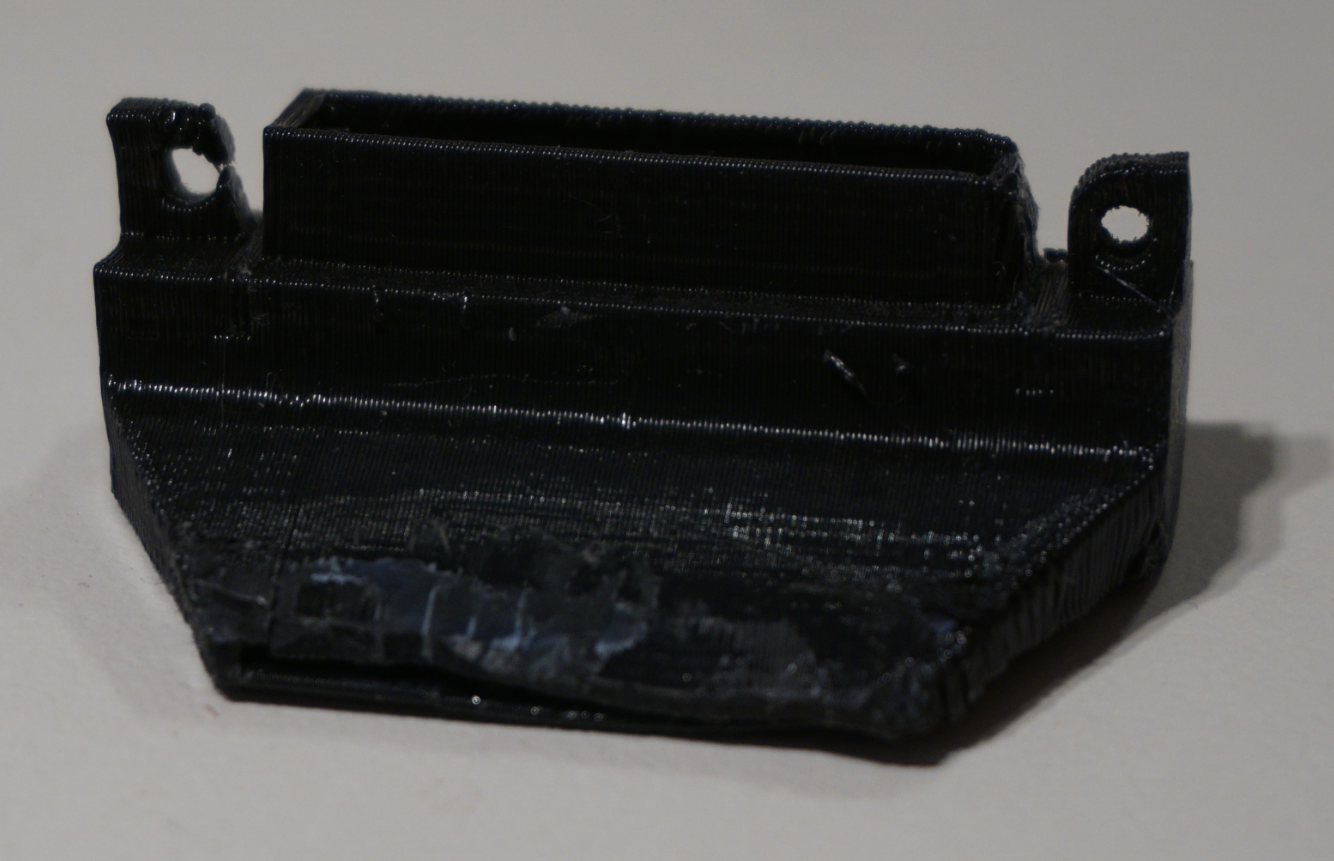

A20M Fan Cover
The Problem with using a 3D printed Part as the Fan cover on this A20M
Is it just Melts
....
Attached Image So what do we do now?
Is it just Melts
....
Attached Image So what do we do now?
- Sat Dec 15, 2018 1:10 am
- Forum: Geeetech A20M
- Topic: Motor Shudder?
- Replies: 1
- Views: 4452
Re: Motor Shudder?
Ok that was certainly part of my Big Issues, what I did do to mess things up was use the Current version of ArdwinoIDE to load firmware
(Because when you order 3d Touch the thing does not shop from factory without the 3D Touch Firmware, so you got to mess around for weeks figuring it out
Indeed ...
(Because when you order 3d Touch the thing does not shop from factory without the 3D Touch Firmware, so you got to mess around for weeks figuring it out
Indeed ...
- Thu Dec 13, 2018 7:03 pm
- Forum: Geeetech A20M
- Topic: Motor Shudder?
- Replies: 1
- Views: 4452
Motor Shudder?
Into my Third week of utter frustration with this printer, I am learning, though getting really close to heave it out the window
I just noticed this note
You need to upload the firmware via Arduino IDE 1.8.5(Use the 1.8.7 or higher version may cause the motor work abnormal)
Yeah I did use 1.8.7 ...
I just noticed this note
You need to upload the firmware via Arduino IDE 1.8.5(Use the 1.8.7 or higher version may cause the motor work abnormal)
Yeah I did use 1.8.7 ...
- Sun Dec 09, 2018 2:13 pm
- Forum: Geeetech A20M
- Topic: Pay for technical assistance.
- Replies: 5
- Views: 9203
Re: Pay for technical assistance.
Everything started working after ArdwinoIDE released a new version, from there Marlin would compile without errors and I was then able to sent up the Marlin changes for 3D Touch and to reduce the Baud rate to Windows Max 115200
From there (As the Geeetech Software doesn't yet support or work with ...
From there (As the Geeetech Software doesn't yet support or work with ...
- Sun Dec 09, 2018 1:31 pm
- Forum: Geeetech A20M
- Topic: USB driver - always unknown
- Replies: 7
- Views: 14357
Re: USB driver - always unknown
The Driver I used
http://www.wch.cn/download/ch341ser_zip.html
Though I have this on Windows 7, what I had to do was use the Ardwino IDE to edit the Baud Rate in the Firmware down to 115200 (The Max windows seems to support) so I'm talking about the Marlin firmware, editing the configuration.h file ...
http://www.wch.cn/download/ch341ser_zip.html
Though I have this on Windows 7, what I had to do was use the Ardwino IDE to edit the Baud Rate in the Firmware down to 115200 (The Max windows seems to support) so I'm talking about the Marlin firmware, editing the configuration.h file ...
- Sun Nov 25, 2018 4:45 pm
- Forum: Geeetech A20M
- Topic: A20M Essentials
- Replies: 13
- Views: 29335
Re: A20M Essentials
Ok, Miracles happen, once I used the new release Arduino 1.8.7 then Marlin firmware for A20M with 3D Touch compiled AND uploaded, AND my 3D touch appears in the menu, Great
In the Front Panel, Auto Leveling goes on, though how to Calibrate? as it seems to level at about 5mm off the deck, so I ...
In the Front Panel, Auto Leveling goes on, though how to Calibrate? as it seems to level at about 5mm off the deck, so I ...
- Sun Nov 25, 2018 4:40 pm
- Forum: Geeetech A20M
- Topic: 3Dtouch/Bltouch auto level guide for A20M
- Replies: 8
- Views: 22274
Re: 3Dtouch/Bltouch auto level guide for A20M
What did he say?
- Thu Nov 22, 2018 5:56 pm
- Forum: Software
- Topic: A20M Support
- Replies: 3
- Views: 10928
Re: A20M Support
Geeetech Can I pay for Techncal Help on this?
What I need is for the Easyprint3D to include support for the A20M, I do guess this will happen eventually, I guess the product is a little premature
Most every person who gets a A20M product will be looking for this
What I need is for the Easyprint3D to include support for the A20M, I do guess this will happen eventually, I guess the product is a little premature
Most every person who gets a A20M product will be looking for this
