Hi tobeca,
I have the same problem, after the upgrade the second extruder does not work. Mix yes. Have you found a solution to modify the configuration of Marlin 2.0.5.3?
I use Prusa Slicer. Verta's FW is working, but they're not stable.

I want to change the drivers so I need to change the marlin source files.

Where can I find the download source files for A10M GT2560V3 +BLTOUCH
Thanks

Hi

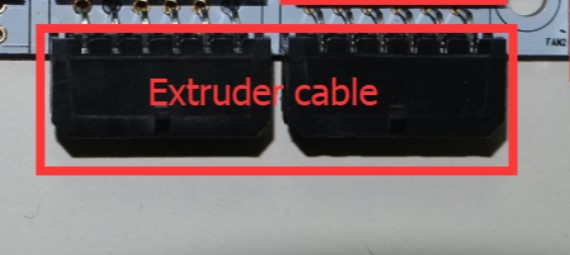

it is necessary to transfer the cable from the damage to the E0 thermistor to the extruder input E1 image.

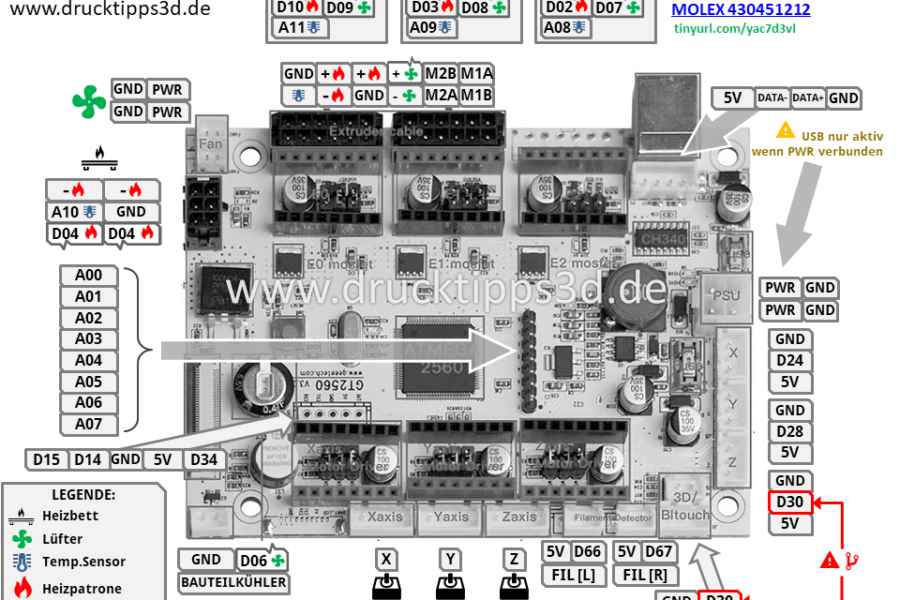

PinOutV GT3260.png

Edit file " pins_GT2560_V3.h" FW MArlin 2.x (Use 2.0.5.3 ) as follows:

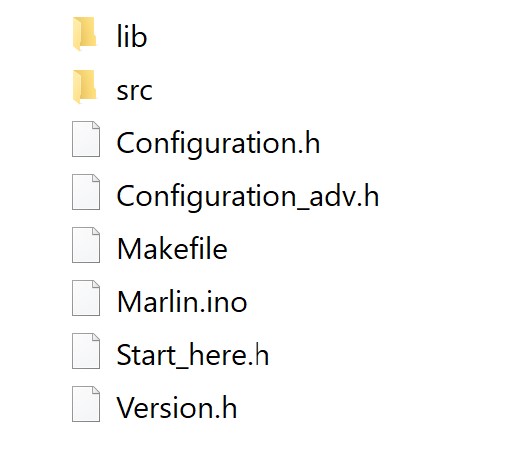

Marlin\src\pins\mega\pins_GT2560_V3.h

// Temperature Sensors
//
#define TEMP_0_PIN 9 // Analog ...

Hi
I found a solution to the damaged thermistor. Today I made this adjustment on my A10M. It must be switched to the E0 thermistor to the E1 thermistor and make a small modification of the FW and everything is functional again. I'll give a better description tomorrow. Sorry for my English.
Aleš

Hi
I found a solution to the damaged thermistor. Today I made this adjustment on my A10M. It must be switched to the E0 thermistor to the E1 thermistor and make a small modification of the FW and everything is functional again. I'll give a better description tomorrow. Sorry for my English.
Aleš

I found it:

Hi
Pinouts like here? Thanks

Is there a PIN description for GT2560 V3.1 for Connectors E0, E1?
Thanks
