Das LCD panel hat zwei Anschlüsse zum board.
Diese sind entgegen der Montageanleitung nicht neben sondern übereinander angeordnet!
Welcher Anschluß auf dem LCD panel ist für die SD Carte?
Kann bei falscher Belegung (Vertausch der Stecker) etwas kaputt gehen?
Danke für die Hilfe
Detlef
Montage LCD Panel
Re: Montage LCD Panel
Could you attach the photos?
We need to refer it tnen give you the suggestions,.
We need to refer it tnen give you the suggestions,.
-Keep your mind and try to test it.
-Everything will be fun！-Support all Getech printer.
-You can ask me the questions and I will kindly reply.
-Respect others is the best way you can get help!
-Everything will be fun！-Support all Getech printer.
-You can ask me the questions and I will kindly reply.
-Respect others is the best way you can get help!
Re: Montage LCD Panel
Hallo William
Acrylic Geeetech I3 Pro C 3D Printer
LCD Panel Connection to Board
Thanks for your help
How can I insert a Picture in this answer ?
Acrylic Geeetech I3 Pro C 3D Printer
LCD Panel Connection to Board
Thanks for your help
How can I insert a Picture in this answer ?
- Attachments
-

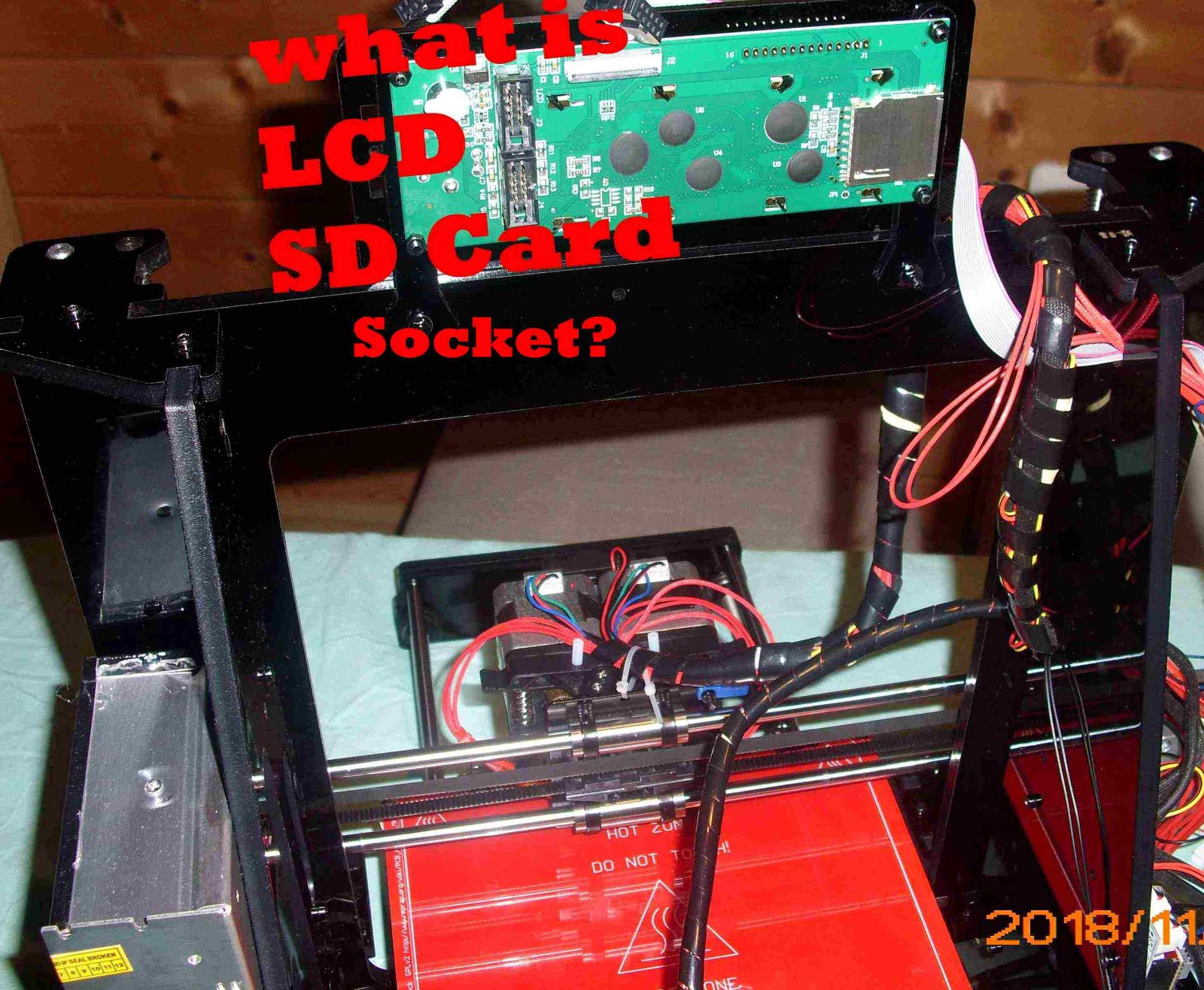

- AGI3ProCpanel.JPG (441.42 KiB) Viewed 6273 times
Re: Montage LCD Panel
You can refer it:Detlef wrote: Wed Nov 28, 2018 5:16 pm Hallo William
Acrylic Geeetech I3 Pro C 3D Printer
LCD Panel Connection to Board
Thanks for your help
How can I insert a Picture in this answer ?

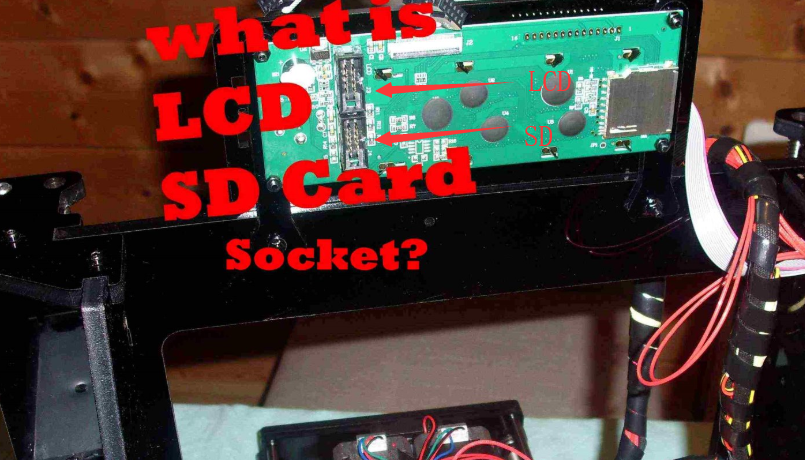

- LCD.png (575.93 KiB) Viewed 6266 times
