Z home with autolevel

[qdshombre]

05:19:39.587 : x_min: TRIGGERED
05:19:39.587 : y_min: TRIGGERED
05:19:39.587 : z_min: open

Don't match for Z. It's my problem since the beginning...(3 weeks on Tuesday)

If you did,check the connection between the endstop and the endstop's connector on the motherboard.

the sensor receives 9 v . the sensor signal is sent to the Z min signal with 4.5 V and ground is connected to ground of the power supply.

[William]

05:19:39.587 : x_min: TRIGGERED
05:19:39.587 : y_min: TRIGGERED
05:19:39.587 : z_min: open

Don't match for Z. It's my problem since the beginning...(3 weeks on Tuesday)

If you did,check the connection between the endstop and the endstop's connector on the motherboard.

the sensor receives 9 v . the sensor signal is sent to the Z min signal with 4.5 V and ground is connected to ground of the power supply.

What is this?"the sensor receives 9 v . the sensor signal is sent to the Z min signal with 4.5 V and ground is connected to ground of the power supply."
And what you mean "don't match",was it a wrong one?

[William]

And did you have a wrong connection to plug the Z endstop into the Z_MAX connector?Or you have a broken Z endstop...Have you done this i told you before?Look the following pic:


If possible,attach a video about all your manipulate in details.

[qdshombre]

schema (Copier).jpg (25.83 KiB) Viewed 11757 times

I have X home and Y home, not Z home.

05:19:39.587 : x_min: TRIGGERED
05:19:39.587 : y_min: TRIGGERED
05:19:39.587 : z_min: open

I have nothing in Z max. The light sensor turns on but Z don't stop .

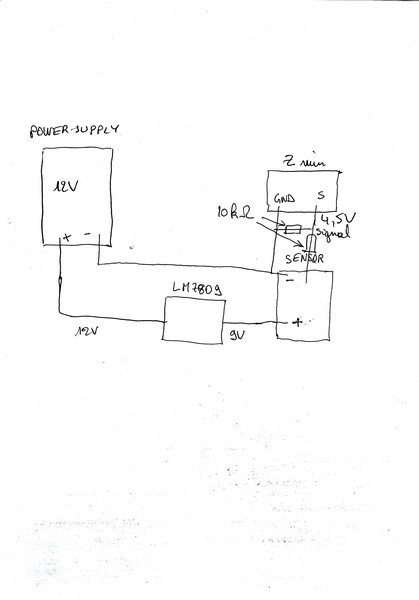

attachment , the schematic of connection.

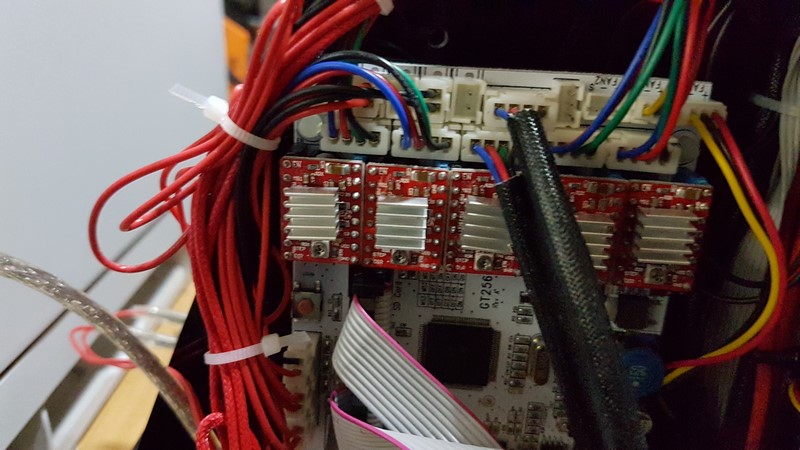

20160604_212547 (Copier).jpg (113.95 KiB) Viewed 11757 times

schema (Copier).jpg (25.83 KiB) Viewed 11757 times

[William]

schema (Copier).jpg

I have X home and Y home, not Z home.

05:19:39.587 : x_min: TRIGGERED
05:19:39.587 : y_min: TRIGGERED
05:19:39.587 : z_min: open

I have nothing in Z max. The light sensor turns on but Z don't stop .


attachment , the schematic of connection.

20160604_212547 (Copier).jpg

schema (Copier).jpg

You mean the Z_min circuit has a problem?And what is the light sensor?Post a pic of your Z axis after you press "home" plz.

[qdshombre]

I say for two weeks home Z does not work, the light of the sensor turns on but the extruder does not stop and continues to go down, and I have to stop . it is an NPN NO sensor .

[qdshombre]

there is a technician to help me out? I will not advise Geeetech... 22 days I'm at stop and no one to help me ...

[William]

I say for two weeks home Z does not work, the light of the sensor turns on but the extruder does not stop and continues to go down, and I have to stop . it is an NPN NO sensor .

Two question:
1.Have you tried to exchange the Z axis its own endstop with another endstop?(Like X axis or Y axis,cuz they are good ones)
Like i said before,but you didn't reply to me if you have done this step.This step is to check if your Z axis endstop was broken:

"That is to say,as you know there are 3 endstops in total(X axis,Y axis and Z axis).I mean you can uninstall the endstop installed the X axis or Y axis before,then install the uninstalled endstop to Z axis's position cuz you said the X and Y axis can home normally."

2.I saw you plugged the 2 Y cables on Z_min,and Y axis don't stop...
On the other hand，i want to ask you,did you have a try to plug the 2 Z cables on X_min or Y_min to see whether Z axis will stop or not????

[qdshombre]

I do not understand how. if I remove the endstop Y for example , the motor blocks, I must stop and I cannot try Z.

[William]

I do not understand how. if I remove the endstop Y for example , the motor blocks, I must stop and I cannot try Z.

Hi,
1.I mean you can exchange the endstop switches of Y axis and Z axis each other to see if the endstop switch of Z axis is bad.

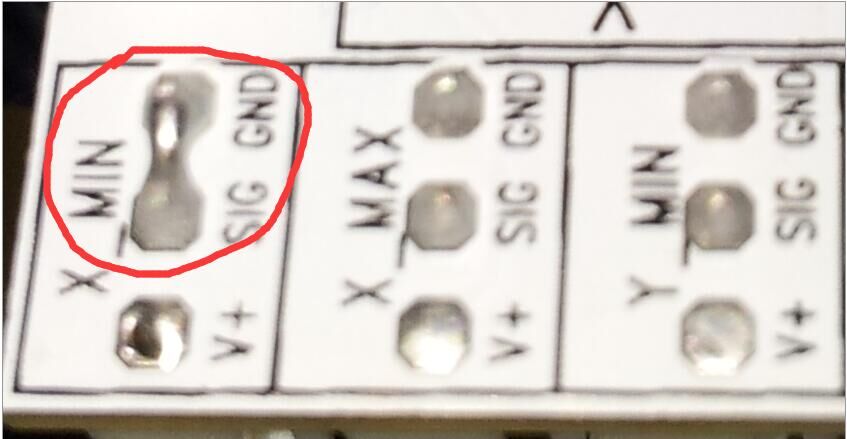

2.Check the back of the motherboard if there is a soldering problem in Z_min pin like the following picture shows:
