Re: LCD display problem
Posted: Tue May 19, 2020 10:52 pm
Hi
where i connect LCD A B C D pins on ST-LINK pins ?
where i connect LCD A B C D pins on ST-LINK pins ?
Geeetech
Here you can share you great ideas about hardware innovation. Here you can enjoy more professional and specialized services, Here is a platform for you to make a difference!
http://forum.geeetech.com/
LCD display problem
Page 8 of 10
Re: LCD display problem
Posted: Wed May 20, 2020 12:38 am
I've this one and need to connect the VCC, GND, SWDIO and SWCLK of the SKlink to the LCD board but I do not know what is the pin setting of this LCD board and I do not find it anywhere. SD updating does not work. I've read that I should copy only the content of the UI folder to the SD card. Or do I've to copy all of the firmware file ?
Re: LCD display problem
Posted: Wed May 20, 2020 11:20 am
maybe you need this?

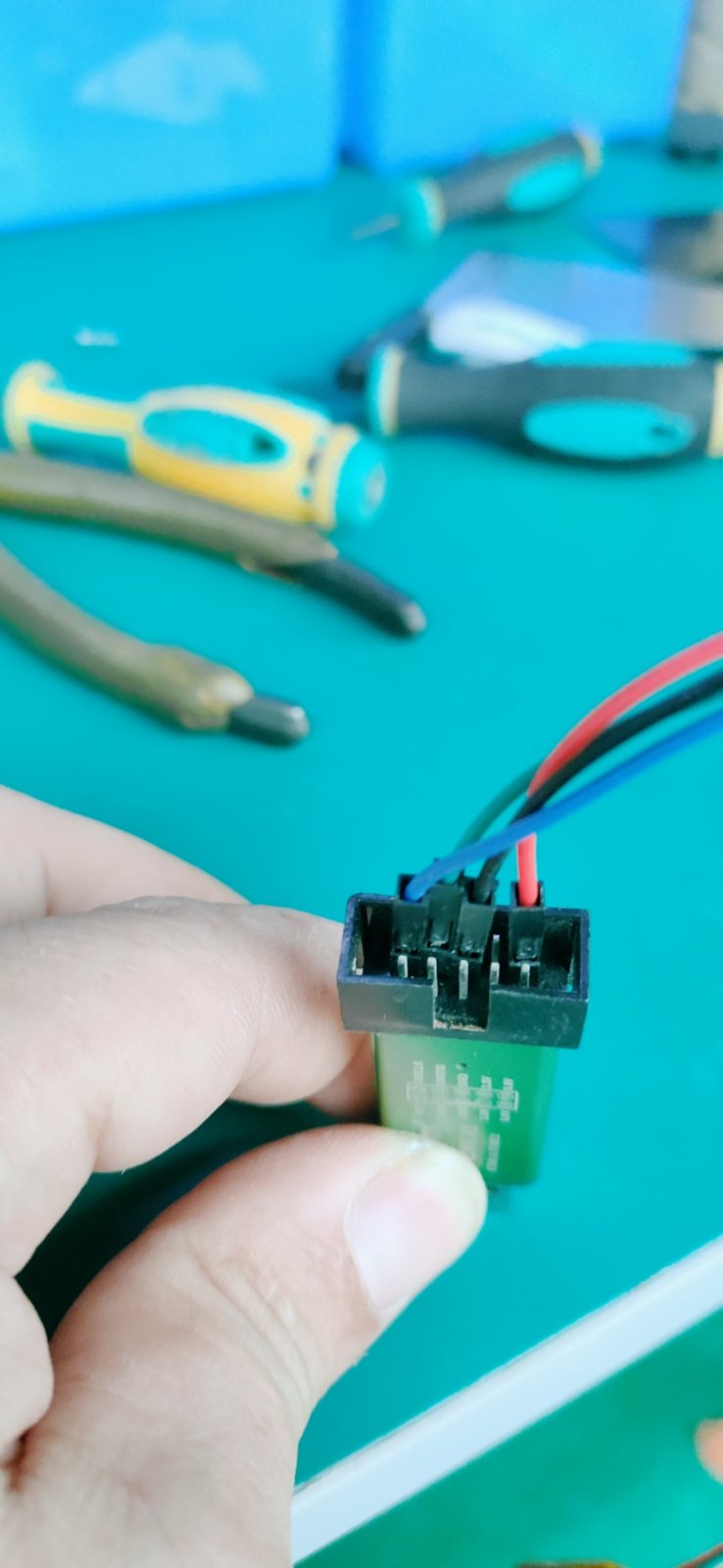

- QQ图片20200520111951.jpg (92.91 KiB) Viewed 7283 times
Re: LCD display problem
Posted: Wed May 20, 2020 11:44 am
Hi William
Look at my picture and tell me where i plug the lcd screen pins A B C and D to ST-LINK pins ? thanks
Look at my picture and tell me where i plug the lcd screen pins A B C and D to ST-LINK pins ? thanks
Re: LCD display problem
Posted: Thu May 21, 2020 4:51 am
Hi
I received the screen today and I installed it as you told me, it turned on, but when I clicked on the icons nothing happened.
The sd card in the control box slot is empty.
I ask you what to do first to avoid creating a problem.
Should i copy some files to the sd card, if yes, which files ?
Thank you.
I received the screen today and I installed it as you told me, it turned on, but when I clicked on the icons nothing happened.
The sd card in the control box slot is empty.
I ask you what to do first to avoid creating a problem.
Should i copy some files to the sd card, if yes, which files ?
Thank you.
Re: LCD display problem
Posted: Thu May 21, 2020 10:08 am
Hi，is the motherboard firmware burned?
You need to restore the factory settings.
If the screen does not respond, it may be that the screen cable is not plugged in properly, you can unplug it again.
You need to restore the factory settings.
If the screen does not respond, it may be that the screen cable is not plugged in properly, you can unplug it again.
Re: LCD display problem
Posted: Thu May 21, 2020 11:23 am
Yes, the motherboard firmware is burned A30 M07 V2 01 bin.
the screen cable is plugged properly. The sd card is new and empty.
How can i restore the factory settings ?
the screen cable is plugged properly. The sd card is new and empty.
How can i restore the factory settings ?
Re: LCD display problem
Posted: Thu May 21, 2020 11:37 am
Hi, did you burned the firmware screen before sended to me ?
Re: LCD display problem
Posted: Thu May 21, 2020 2:44 pm
Yes, the screen we sent you is burned firmware. If it cannot be clicked, there may be a problem with the screen. Can you show me the screen wiring? you can do this：
1. How to burn motherboard firmware:
Motherboard application: A30_M07_V2_01.bin (CRC32: 4E6ED0BA)
Motherboard boot program: MotherBoot_bootloader_V3.0.bin (CRC32: A81D6687)
The motherboard boot uses the "Flash Loader Demo" programming tool for programming, and the motherboard application uses the "firmware_tool_V2.0" programming tool for programming and must be the firmware_tool tool of version V2.0 or later.
2. There is also a way to burn the screen, you can try it with the first screen. If there is no problem with the hardware, you should be able to use it after these operations.
Hope to help you！
1. How to burn motherboard firmware:
Motherboard application: A30_M07_V2_01.bin (CRC32: 4E6ED0BA)
Motherboard boot program: MotherBoot_bootloader_V3.0.bin (CRC32: A81D6687)
The motherboard boot uses the "Flash Loader Demo" programming tool for programming, and the motherboard application uses the "firmware_tool_V2.0" programming tool for programming and must be the firmware_tool tool of version V2.0 or later.
2. There is also a way to burn the screen, you can try it with the first screen. If there is no problem with the hardware, you should be able to use it after these operations.
Hope to help you！
Re: LCD display problem
Posted: Thu May 21, 2020 4:00 pm
Hi
Here are the photos of the screen wiring.
P.S. where can i found the MotherBoot_bootloader_V3.0.bin (CRC32: A81D6687) ?
Thank you
Here are the photos of the screen wiring.
P.S. where can i found the MotherBoot_bootloader_V3.0.bin (CRC32: A81D6687) ?
Thank you
