Y Axis Length

[Suggy]

Hi all. Started ro assemble my Pro B and I have used all the right parts.
M10 threaded rod 450mm
Smoth rod 390mm
Y plate connecting plate
M10 spring washers
M10 washers
M10 nuts

But when its assembled the 10mm threaded rod 10 is protudes out the ends by, front 10mm and back 25mm.
I have souble checked the rod sizes on both the M10 threaded rod and the smooth rid and both are correct.
Is this how it should be or is there an error in the build instructions and I should use the 410mm smothe rod?

Thanks for looking and any input you can offer

[William]

Hi,

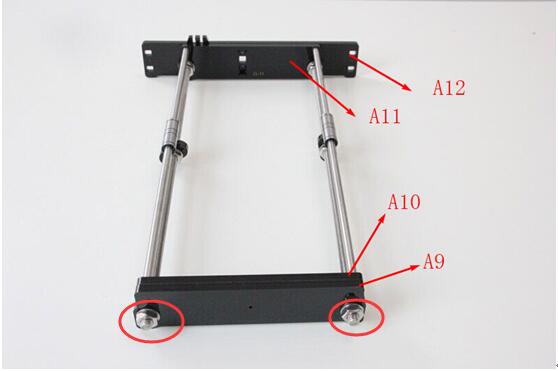

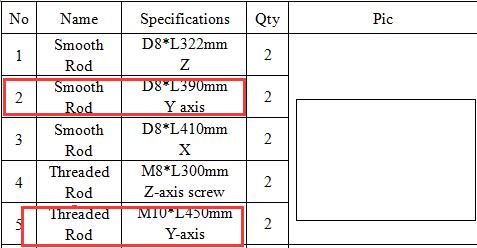

The 390mm and 450mm rods are all for Y axis,so it is right.I've seen the instruction,it indeed protrudes several milimeters,see the two pics:



[Suggy]

Intresting. See this post
http://www.geeetech.com/forum/viewtopic ... 544#p33544

[William]

Maybe you can attach some pics about your assembly.

[Suggy]

Here you go

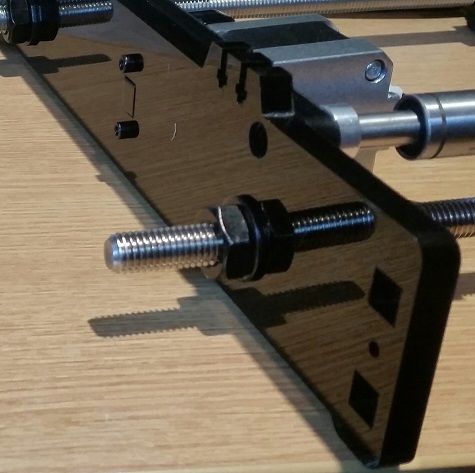

Back 30mm of thread showing

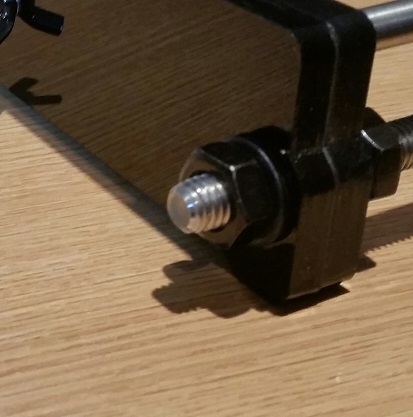

Front 10mm of thread showing


[William]

Sorry,i mistook it
The instruction didn't update in time.
You should use the 410mm smooth rods to replace 390mm.
