GT 2560 V3.1 WIRING

[Snake_ARG]

HELLO, ANYONE HAVE A MANUAL OF A BOARD GT 2560 V3.1 OR KNOW HOW IS THE WIRING OF THIS CONTROLLER? IF ANYONE HAS A PHOTO IT WOULD BE GREAT

[William]

Hi，It is the same as 3.0.


[Din0]

Is there a PIN description for GT2560 V3.1 for Connectors E0, E1?
Thanks

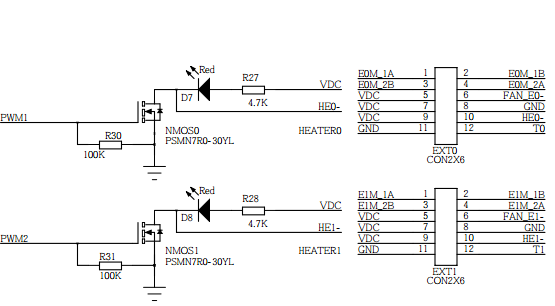

GT2560 E0E1.jpg (26.08 KiB) Viewed 19998 times

[William]


[Din0]

Hi
Pinouts like here?

Code: Select all

https://klipper.info/mcu-resources-1/mks-gen-l

Thanks

[Din0]

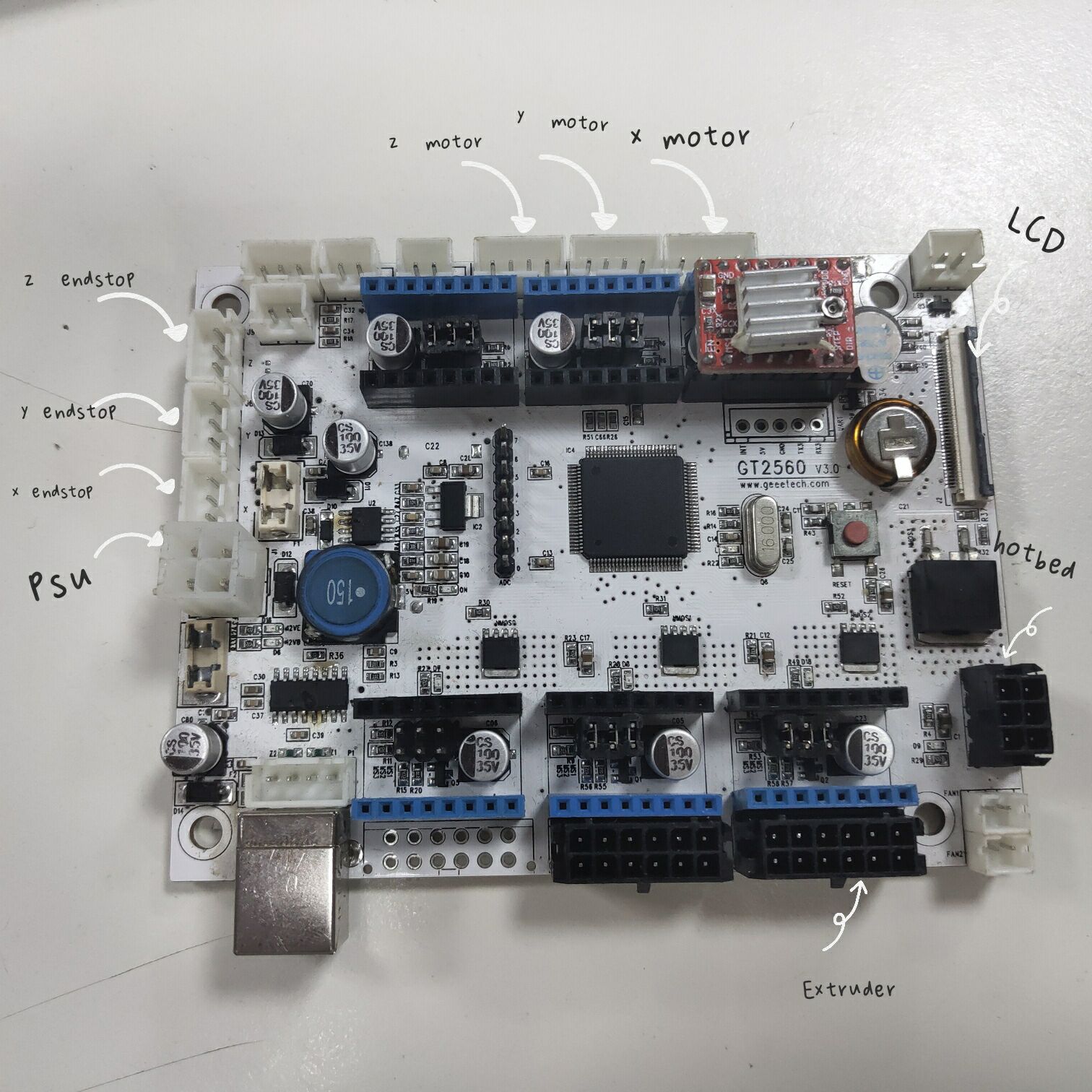

I found it:
