Fan connections

[tassat01]

Hi there,

Can someone tell me the connection for the extruder fan and the controller fan that's mounted next to the controller.

Is the extruder fan in number 3 and controller fan number 1. Just so I can be sure mines correct.

Pete

[William]

Hi there,

Can someone tell me the connection for the extruder fan and the controller fan that's mounted next to the controller.

Is the extruder fan in number 3 and controller fan number 1. Just so I can be sure mines correct.

Pete

Hi,Pete
These fan connectors on the motherboard are generic and can be freely inserted.

[tassat01]

Thanks for the info. What is the PWM-fan input

[William]

Thanks for the info. What is the PWM-fan input

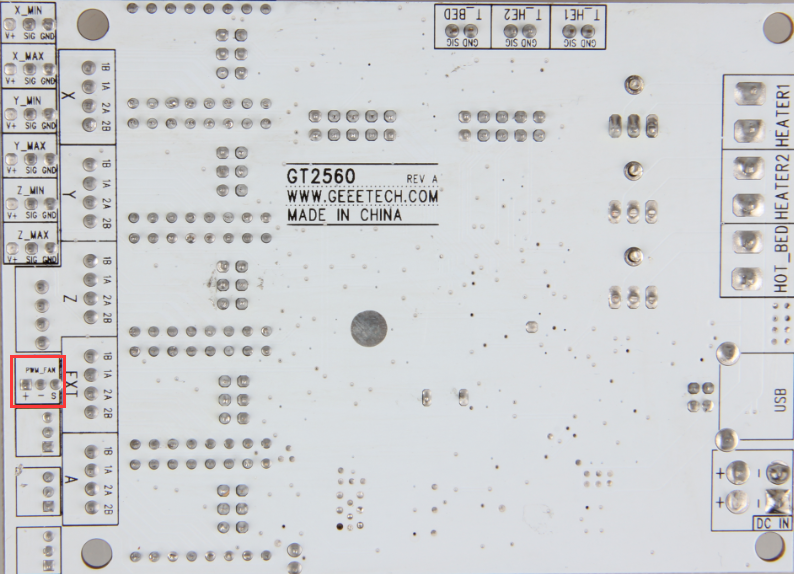

That's it:

[tassat01]

What is the function of pwm fan output. What is connected to this.

[Toy]

What is the function of pwm fan output. What is connected to this.

PWM fan can be controled by repetier-host, you can connect any of your fan into it.

[risoo]

hello
i put fan conektor to +- pwm pin and fan is still working ... in pc is settings 0% on fan.

i can control fan to 100% but 0% on settings in rephost does not mean 0% on fan.
