Motors on extruder doesn't work

sogi
Posts: 14
Joined: Tue Jun 09, 2015 2:50 am

Re: Motors on extruder doesn't work

Post by sogi »

Yes, when motors is moving, when motors is stopped. Always.
zhangxueyou
Posts: 1405
Joined: Fri Feb 06, 2015 1:33 pm

Re: Motors on extruder doesn't work

Post by zhangxueyou »

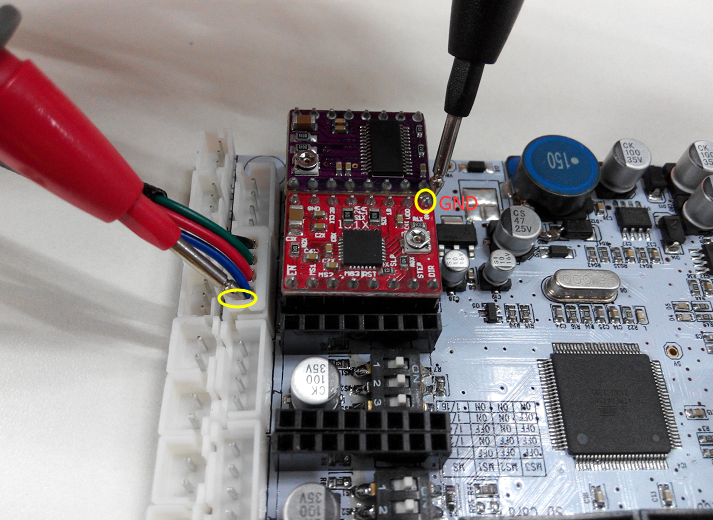

The following picture shows how to test the voltage. Please contact the seller to tell them your issue.
And could you please tell me how is another extruder motor output voltage?
how to test motor ouput voltage.png
how to test motor ouput voltage.png (633.52 KiB) Viewed 11935 times
sogi
Posts: 14
Joined: Tue Jun 09, 2015 2:50 am

Re: Motors on extruder doesn't work

Post by sogi »

I tested voltage like shows on picture. Voltage on all four wires is 12,86V, when motors on extruder stopped or moving. Voltage on wires of axes motors varies from 0,17V to 3,65V, when motors on axes stopped or moving.
zhangxueyou
Posts: 1405
Joined: Fri Feb 06, 2015 1:33 pm

Re: Motors on extruder doesn't work

Post by zhangxueyou »

I am a little confused by you. Is the 12.86V got from PSU?
When the extruder is moving , the voltage between GND and any pin of extruder motor slot is changing instead of a firm value, just like the axes.
sogi
Posts: 14
Joined: Tue Jun 09, 2015 2:50 am

Re: Motors on extruder doesn't work

Post by sogi »

And what I need to do? Replace the control board?
zhangxueyou
Posts: 1405
Joined: Fri Feb 06, 2015 1:33 pm

Re: Motors on extruder doesn't work

Post by zhangxueyou »

Let's check one more thing: Please check if there are 2 groups of 12V DC voltage from PSU when you turn on the printer. Please take a picture, show me how you test the voltage.
sogi
Posts: 14
Joined: Tue Jun 09, 2015 2:50 am

Re: Motors on extruder doesn't work

Post by sogi »

I wrote to you my results of voltage test above.
zhangxueyou
Posts: 1405
Joined: Fri Feb 06, 2015 1:33 pm

Re: Motors on extruder doesn't work

Post by zhangxueyou »

If you can not move extruder by LCD (Prepare>move axis>move 1mm>extruder) after raise the temperature, please contact the customer service.
In this post shows how to set your printer in Repetier-Host:
http://www.geeetech.com/forum/viewtopic ... 21&t=16512
sogi
Posts: 14
Joined: Tue Jun 09, 2015 2:50 am

Re: Motors on extruder doesn't work

Post by sogi »

Hello. I replace the control board and extruder motors came alive. But if I press the button "Extrude" in the Repeiter-Host the motor ejects the filament up. If I press "Retrarct" - the motor pulls the filament into extruder. And when I want to print anything the motor ejects the filament up. What I need to do?
sogi
Posts: 14
Joined: Tue Jun 09, 2015 2:50 am

Re: Motors on extruder doesn't work

Post by sogi »

I connected all wires like on old control board. I can not to connect wires, because the jack can connect only in one direction. The settings in Repeiter-Host like in instructions. I upload the firmware that you send on my e-mail.
