HI
[attachment=1]Hardware_GT2560_RevA+_1.png[/attachment]
[attachment=0]Hardware_GT2560_RevA+_2.png[/attachment]
GT2560 Rev. A+ schematic
Re: GT2560 Rev. A+ schematic
- Attachments
-

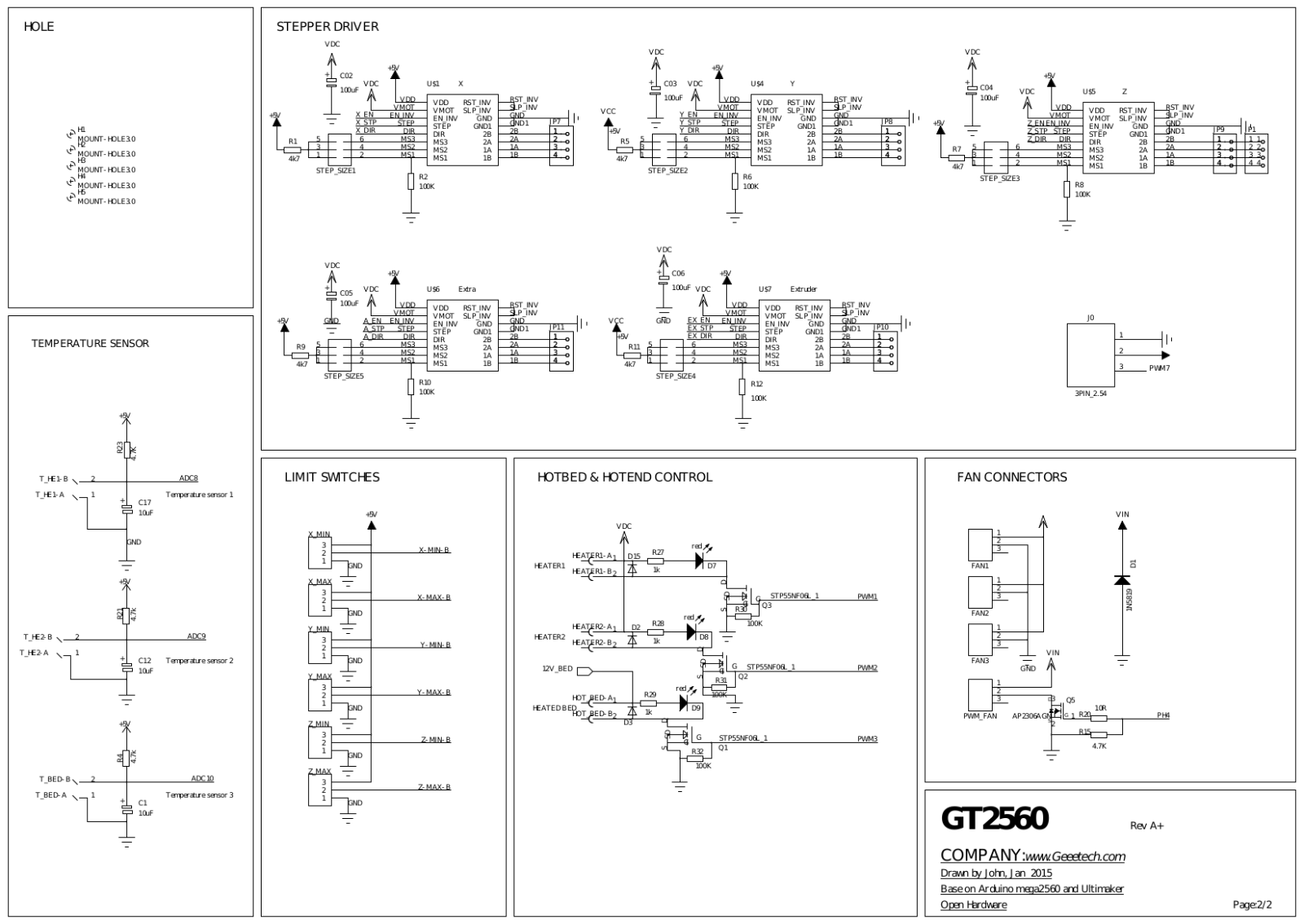

- page 2
- Hardware_GT2560_RevA+_2.png (295.06 KiB) Viewed 24657 times
-

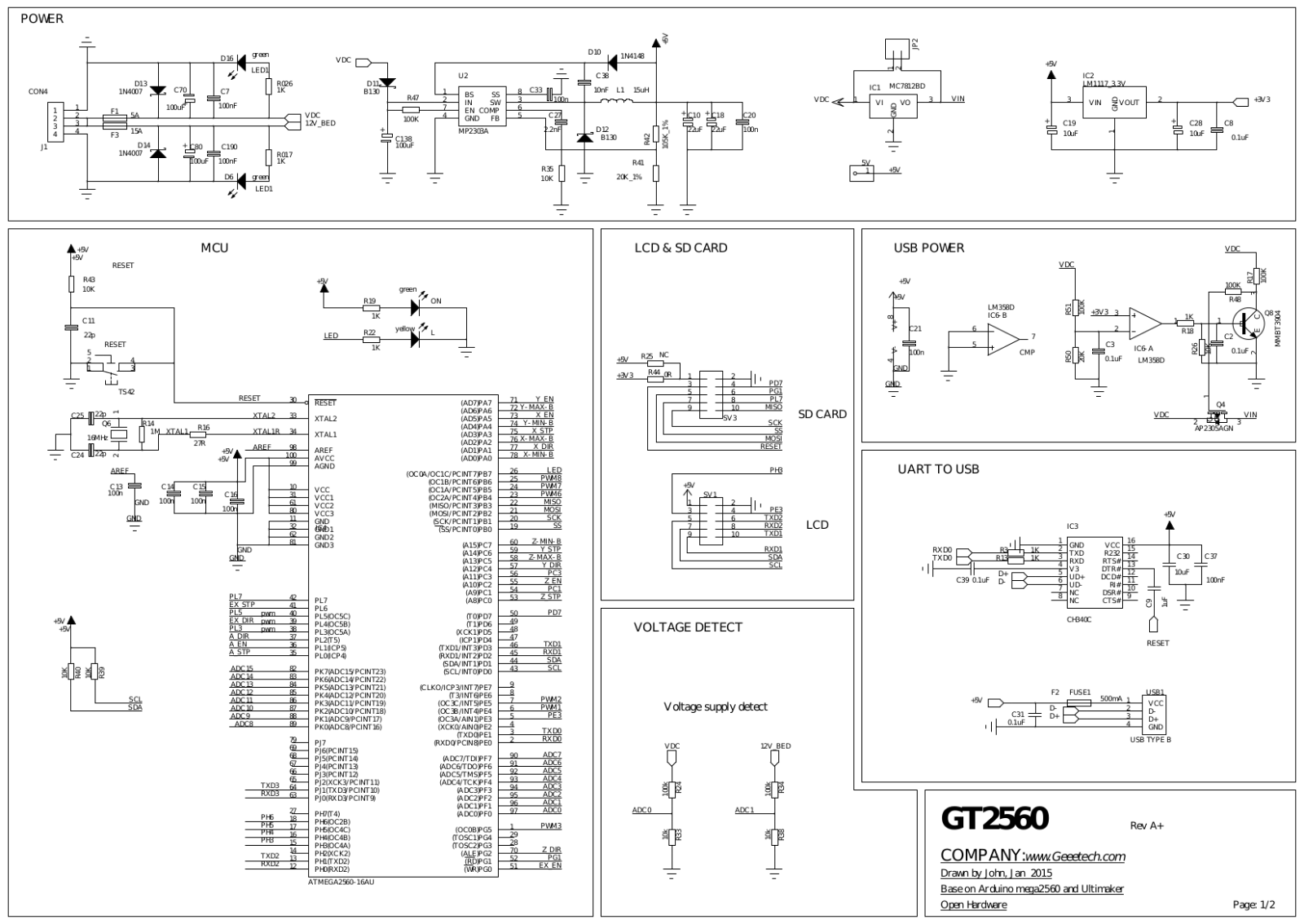

- pade 1
- Hardware_GT2560_RevA+_1.png (367.74 KiB) Viewed 24657 times
Re: GT2560 Rev. A+ schematic
[quote=5a2v0 post_id=84664 time=1529413397 user_id=66394]
hi, I have a geeetech prusa i3 pro b.
on the pwm fan pin i got 5v when repetier host was set at 100% fan.
is it normal or i must have 12v?
[/quote]
No, it is not normal. 100% should be 12V not 5V. If you get 5V you measure it wrong or something is wrong with your card. PWM output should give you 6V if fan speed is set to 50%, 5V is about 42%.
hi, I have a geeetech prusa i3 pro b.
on the pwm fan pin i got 5v when repetier host was set at 100% fan.
is it normal or i must have 12v?
[/quote]
No, it is not normal. 100% should be 12V not 5V. If you get 5V you measure it wrong or something is wrong with your card. PWM output should give you 6V if fan speed is set to 50%, 5V is about 42%.
Re: GT2560 Rev. A+ schematic
Ginko, you are wrong.
Re: GT2560 Rev. A+ schematic
Sorry I made the mistake!
I check it, it's around 12V when the rate is 100%.
Thanks for pointing out.
I check it, it's around 12V when the rate is 100%.
Thanks for pointing out.
