Re: RAMPS-FD

Posted: Mon Aug 11, 2014 9:04 am
by Alex-w
Dear friend,
you'd better check the due first,make sure it is ok.Tips:you'd better don't connect the other board or module

Re: RAMPS-FD

Posted: Mon Aug 11, 2014 2:47 pm
by ps2gator.ebat
I did. and I reported the results.

what is the next step in getting this resolved. I am getting frustrated.

Re: RAMPS-FD

Posted: Mon Aug 11, 2014 6:24 pm
by Alex-w
1.if you use due+fd(fd not use power),and it does not work,the fd maybe broke
2.if you use due+fd+stepper motor+ other,the current is not enough

Re: RAMPS-FD

Posted: Sat Aug 16, 2014 4:27 am
by ps2gator.ebat
It sounds like the FD is broken then. you can send another if you like, or arrange for a refund for both my FD and Due.

As long as it took to come to an answer, I think I would rather send it all back. This is for my 5th printer, and I had no idea it would be this much trouble to evaluate the RAMPS-FD/due combo.

Re: RAMPS-FD

Posted: Sat Aug 16, 2014 11:35 am
by Alex-w

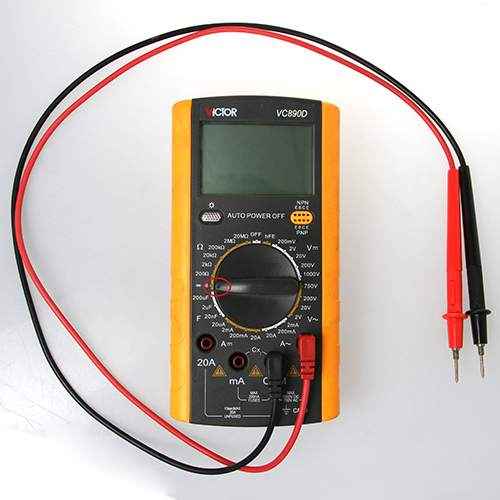

1.first,you should set the multimeter like img 4021
2.then test these point +5v(RED Probe)& gnd(black Probe) and +3.3v(red Probe) & gnd(black Probe)。
if If the multimeter tweet,the FD is short with power

Re: RAMPS-FD

Posted: Sun Aug 17, 2014 7:17 am
by ps2gator.ebat
I get 7V where it should be 5V, and nothing at all on the 3.3V

Re: RAMPS-FD

Posted: Mon Aug 18, 2014 2:21 pm
by Alex-w
i meens that test the power and gnd。are they short?NOT test the voltage

Re: RAMPS-FD

Posted: Tue Aug 19, 2014 12:10 pm
by ps2gator.ebat
Ok. Is there something else you want me to do? or are you ready to arrange a return?

Re: RAMPS-FD

Posted: Tue Aug 19, 2014 2:05 pm
by Alex-w
There is nothing for the time being。if it is short,there is short in capacitance。if not,the ic maybe broken

Re: RAMPS-FD

Posted: Thu Sep 18, 2014 9:21 am
by ps2gator.ebat
Since you diagnosed a bad FD, I ordered a new one. The new one arrived and it does the same thing as the last one. (no USB communications when the FD is powered).

Any advice?
