Z-Axis reversed, please help

Post Reply
IgorAntunov
Posts: 7
Joined: Tue Feb 10, 2015 3:40 pm

Z-Axis reversed, please help

Post by IgorAntunov »

I have this board that came with this printer; http://www.dx.com/p/geeetech-rostock-mi ... lue-349046


Everything is hooked up as indicated with corresponding end-stops for each motor. But when operating the printer (hooks up just fine to Repetier running marlin firmware), z-xis motor is reversed so that it always moves down from 0+, either through repetier or directly in the lcd control panel; making calibration with end-stops and printing impossible. How do I fix this?

Also, what are these for :oops: :


Thanks for your time!
harry_chen
Posts: 28
Joined: Fri Feb 06, 2015 1:43 pm

Re: Z-Axis reversed, please help

Post by harry_chen »

Hi IgorAntunov
You can reverse the direction of the 4-pins plug about z-axis, and reconnect it the to the main board.

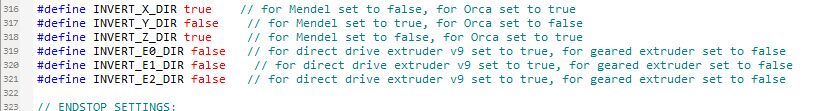

Or you can edit the firmware: change the INVERT_Z_DIR--TRUE to FALSE, or the opposite.

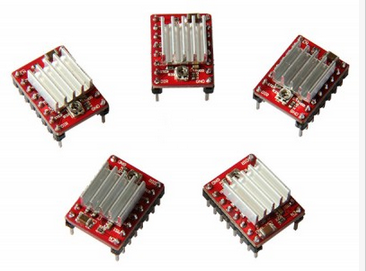

And they're heatsinks, you can install them on the motor driver.
Sincerely
Harry
IgorAntunov
Posts: 7
Joined: Tue Feb 10, 2015 3:40 pm

Re: Z-Axis reversed, please help

Post by IgorAntunov »

Ah thanks, will try!
IgorAntunov
Posts: 7
Joined: Tue Feb 10, 2015 3:40 pm

Re: Z-Axis reversed, please help

Post by IgorAntunov »

Edit: what is the safest way to edit the firmware? Do I have to burn a new version?
IgorAntunov
Posts: 7
Joined: Tue Feb 10, 2015 3:40 pm

Re: Z-Axis reversed, please help

Post by IgorAntunov »

Edit2:

Please tell me precisely which version of Marlin firmware goes with this sanguinololu 1.3a/atmega1284 board/chip combo. I just installed the wrong one. The SD card that came with the printer was fried/broken, I assume that had some software on there. Is it marlin version 1.0?
harry_chen
Posts: 28
Joined: Fri Feb 06, 2015 1:43 pm

Re: Z-Axis reversed, please help

Post by harry_chen »

Hi IgorAntunov
Here are all the software resouces in our official website.They are verified and can help you.
http://www.geeetech.com/wiki/index.php/ ... _Resources
