Fanduct for Prusa i3 Pro and Pro B for better resolution

[jgvonk]

Best Geeetech users,

With the included STL files the I3 performance is a lot better.
Now I achieve a resolution of 0.06mm (nozzle 0.3mm)

Users of the Prusa I3 Pro should print both files and add them to the printer.

Prusa I3 Pro B users only need to print the Fan duct and add it to the printer.

Fan duct source: http://www.thingiverse.com/thing:729961
Thanks to thegman

Have Fun!

[zhangxueyou]

Thank you for your suggestion, jgvonk. But could you please tell how the install that part? I will be glad if you leave a picture. Thank you.

[jgvonk]

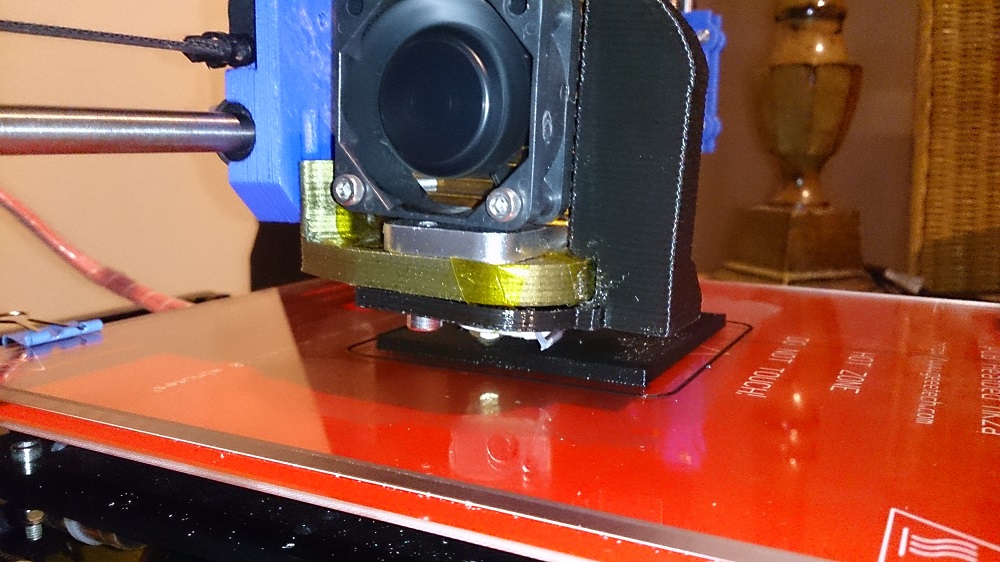

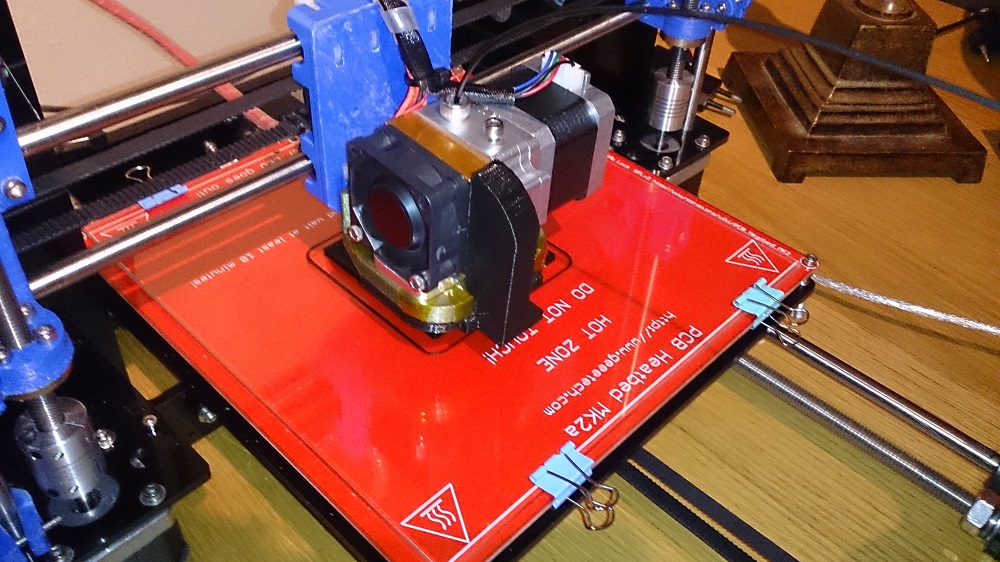

Here the pictures of the installed Fan duct. Fan duct falls below the extruder suspension for the Geeetech Prusa i3 Pro B and the original screws can be used.

[Justinb81]

Is the extruder holder different as well? I see your extruder is more to the right.

Groetjes

[jgvonk]

It is the holder of the extruder Geeetech Prusa pro b. Is in the zip file

[leonardo.galardi@gmail.com]

Does it improve also abs printing or only pla?

[Justinb81]

Yes, I get it now. My metal plate between holder and extruder was flipped the other way placing my fan more to the left of the bracket. I've changed it now and tried the fan duct. I have a feeling it blowing to much on my heater block now. It takes for ever to reach its temperature. I'll try and rotate the block.

[szeiger]

I have the same issue with the position of the duct, are we missing something? I'm printing the other stl you provided but it looks the same as what I already have. Please advise, and know the we appreciate your efforts.

[szeiger]

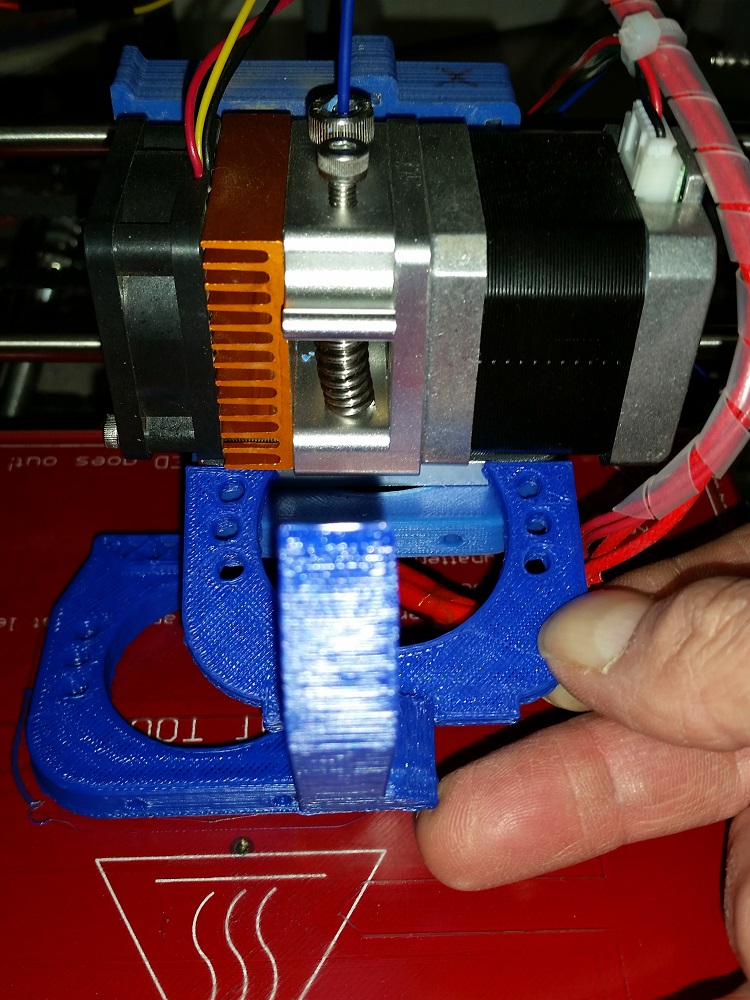

This pictures goes with my last post.

[szeiger]

I'll rotate the plate as mentioned above and give it a go.
