x-axis onley goes to the left
Posted: Tue Jun 09, 2015 5:18 pm
by 3Dmarketse
Hi,
I bought a pursa i3 pro B and everything works exept the x-axis.
It moves with no problem to the left but not to the right so the extruder will move to the left until it hit the side and crash.
Auto home works for every axis.
New discovery.
I took of one cable for the z-axis motor (accident) and everything workt perfectly exept that only one z-axis motor worked.
Is it underpowered?
Re: x-axis onley goes to the left
Posted: Fri Jun 26, 2015 4:12 pm
by 3Dmarketse
Something new I notest by accident.
I took of one cable (accident) for the z-axis motor and everything worked perfektly exept it was just one z-axis step motor on.
Is it underpowered?
Re: x-axis onley goes to the left
Posted: Sat Jun 27, 2015 4:14 pm
by zhangxueyou
Could you please take a photo of mainboard with wiring, let me have a look.
Re: x-axis onley goes to the left
Posted: Sat Jun 27, 2015 4:38 pm
by 3Dmarketse

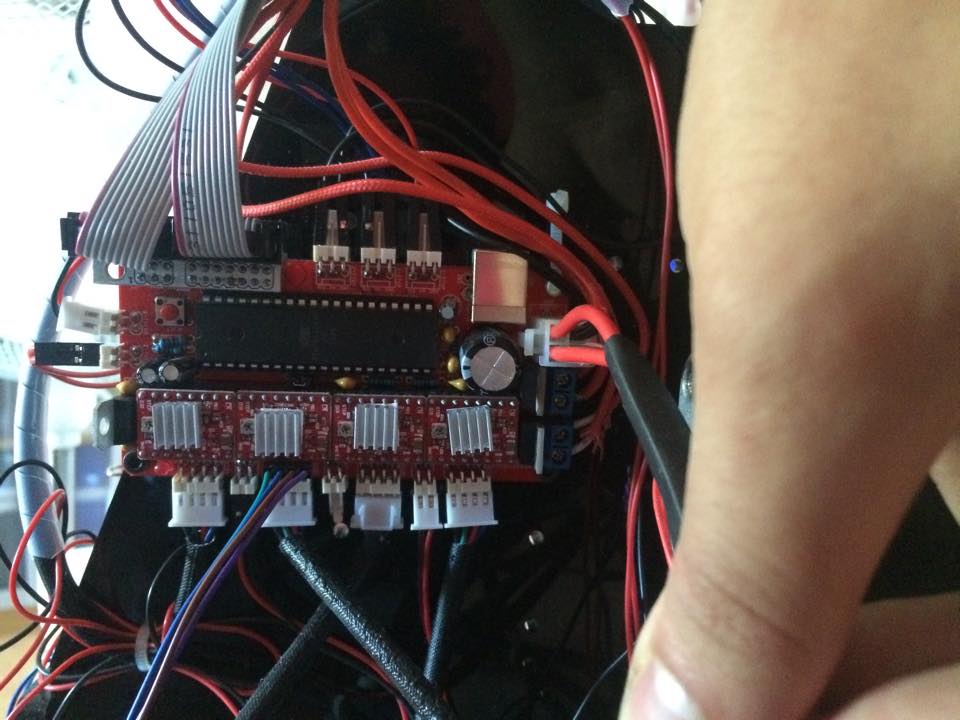

- 11655294_10153472981757049_2049933745_n.jpg (76.27 KiB) Viewed 13653 times
Re: x-axis onley goes to the left
Posted: Sat Jun 27, 2015 5:06 pm
by zhangxueyou
You plug y motor and one of the fans in wrong direction. I am worried that the fan is dead.
And please take some picture of printer(front side, back side, left side), I want to see the color of endstops wires.
Re: x-axis onley goes to the left
Posted: Sat Jun 27, 2015 6:01 pm
by 3Dmarketse
oki Ill try to fix it but the y-motor will go in the wrong direction thats why I plugged it that way.
Re: x-axis onley goes to the left
Posted: Sat Jun 27, 2015 6:11 pm
by 3Dmarketse
PS. The fan works fine
Re: x-axis onley goes to the left
Posted: Mon Jun 29, 2015 10:11 am
by zhangxueyou
How about re-uploading the firmware? The firmware has been sent to your email, you can refer to this page to upload it:
http://www.geeetech.com/forum/viewtopic ... 20&t=16433
Re: x-axis onley goes to the left
Posted: Mon Jun 29, 2015 5:15 pm
by 3Dmarketse
i updated the firemware but to no succes.
The y-steppmotor goes the wrong way and the x-steppmotor have no power to move the extruder.
the fan works good ant the z-motor works good.
Do you have any idé what I have missed?
Re: x-axis onley goes to the left
Posted: Mon Jun 29, 2015 5:57 pm
by zhangxueyou
Do you have a multimeter? If you have, please test something:
1. Test if there are 2 groups of 12V output voltage from PSU when you turn on the printer.

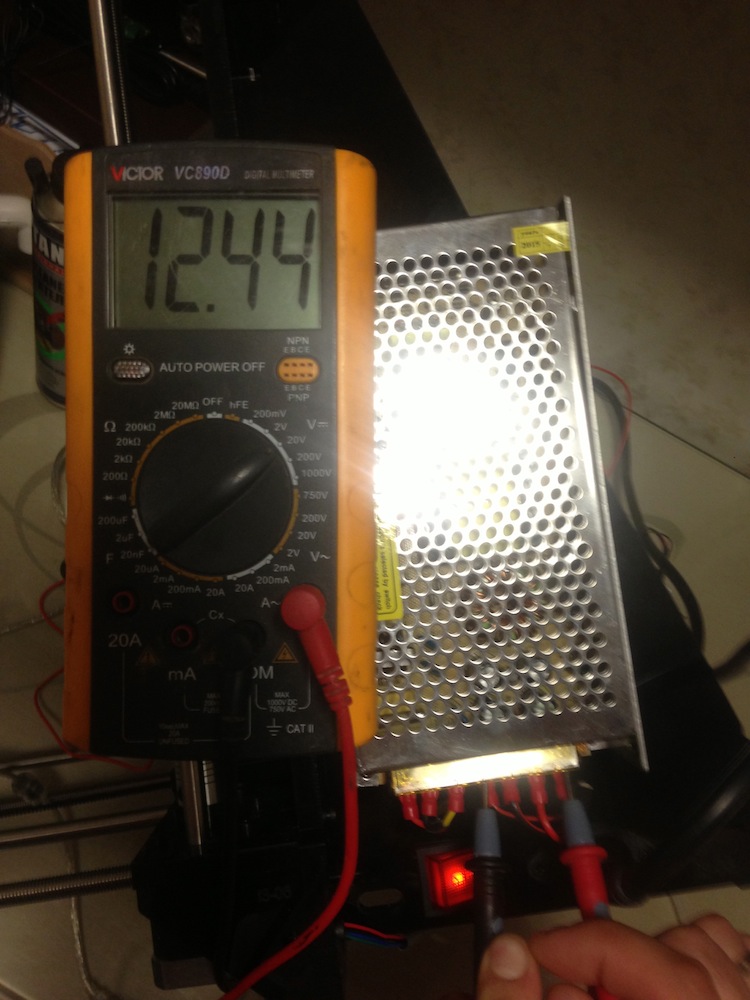

- how to test PSU output2.jpg (158.29 KiB) Viewed 13622 times

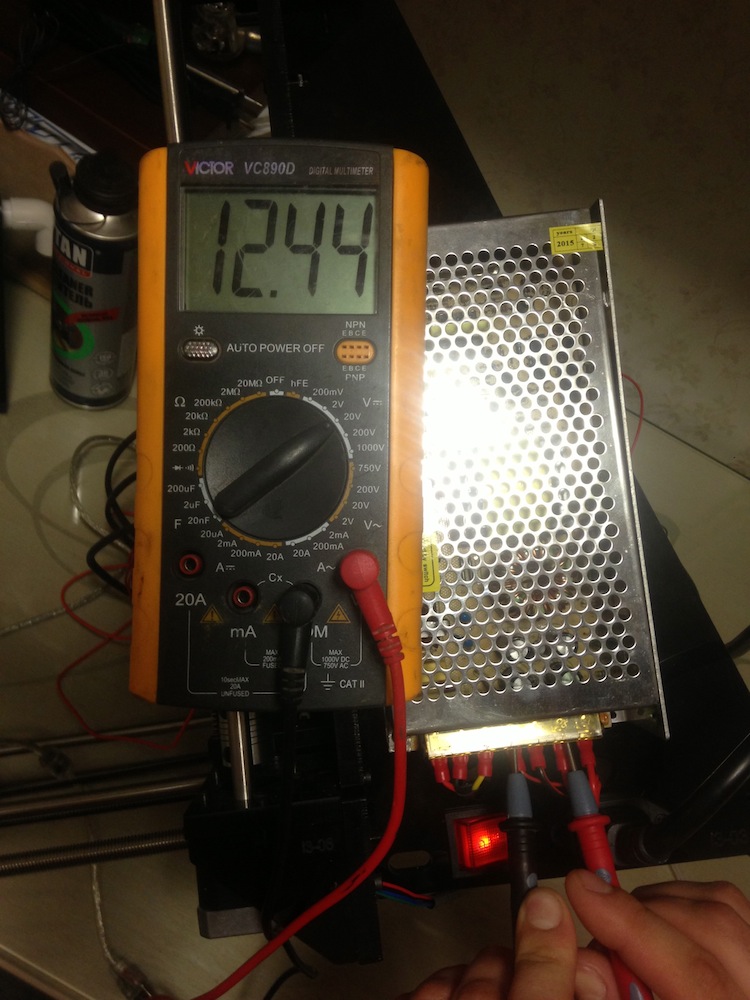

- how to test PSU output1.jpg (184.34 KiB) Viewed 13622 times
2. Can you move the x axis by your hand easily? If not, please loosen the x belt slightly.
If you can move the x axis easily, test the voltage between the screw on x motor driver and GND as shown in the picture, the voltage should be around 0.9V, rotate the screw slightly to calibrate the voltage:

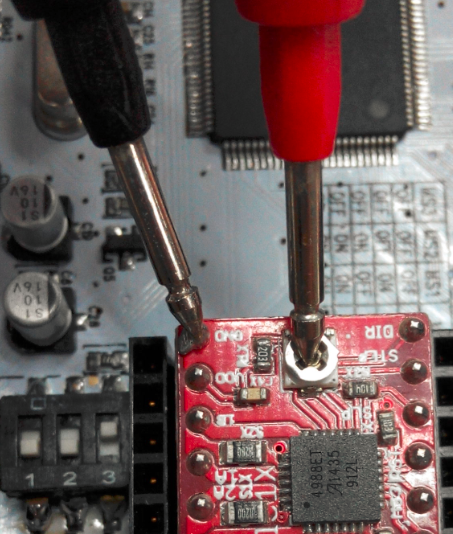

- test referring voltage.png (438.77 KiB) Viewed 13622 times
When does the y axis go in the wrong way? Homing or when you want to move the y axis separately?
