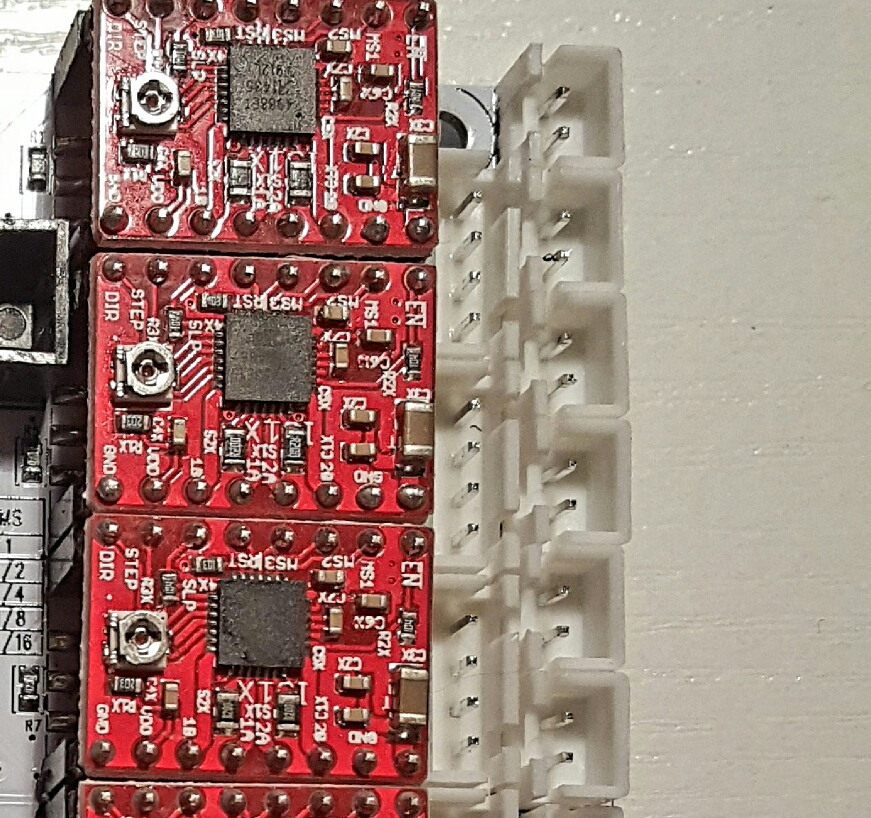

I have the 3D touch leveling sensors. I have the GT2560 board but not like in the description. So now i dont know how to wire the sensors. I cant solder the 3 pins on ZMAX because there are only 2. How can i wire the sensors on the board? Show attachement, this are my endstops on the board.
Thanks
Attachments
I have the 3D touch leveling sensors. I have the GT2560 board but not like in the description. So now i dont know how to wire the sensors. I cant solder the 3 pins on ZMAX because there are only 2. How can i wire the sensors on the board? Show attachement, this are my endstops on the board.
Thanks
Hi,
Did you read the User Manual of 3D touch?

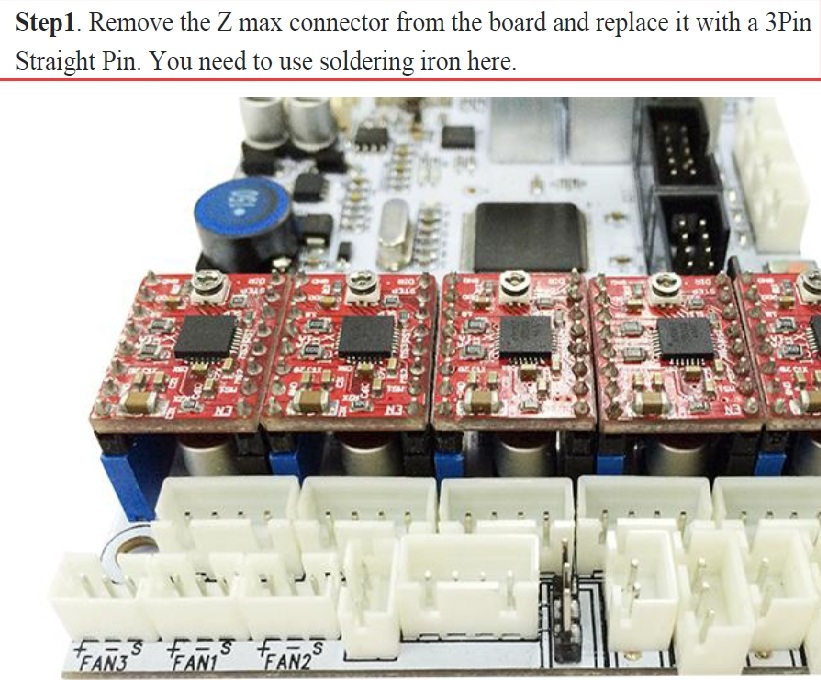

You need remove the Z_max connector then solder another 3-pin connector to replace it,otherwise you can't get your sensor working i guess:
Yes i read the manual. But i have a different board... i dont have 3 connectors on the board to solder a 3pin header... look at the picture, my endstop connectors are all facing parallel to the board. On the board in the description they are 90° degrees otherwise.
Laeriut wrote:5v from pin of the Stepper driver and GND and control signal from Z-MAX
That sounds like a great solution, cause I'm to scared too solder on my board.
is it possible for you two take a photo of your wiring? Which stepper driver pin you used?
[quote="Laeriut"]5v from pin of the Stepper driver and GND and control signal from Z-MAX :)[/quote]
I have the same issue can you take a picture of the wires please ?
EDIT : Connection wires solved for me, i have found a pdf files who have an update picture for the "GT2560 Rev a+" board, see the picture below for understand how to connect
[img]http://i.imgur.com/E0t34VU.png[/img]
Last edited by Romuald on Sun Oct 15, 2017 11:49 pm, edited 1 time in total.
Hi,there are 3 pins on ZMax 's location.You just need to replace the 2pins' socket with 3pins.
-Keep your mind and try to test it.
