Ordered and received Geeetech Prusa i3 M20126 September last year. Had to leave it in storage until recently ready to assemble.

Followed Downloaded .pdf and videos until step 24. Whoa!! No extension boards (Part 68) nor (69) or (M6). Something different?

The extruder motors seem differently assembled, and had to drill M6 holes in mounting brackets to fit the motors

Control Board, No (74) is Totally Different!!! Which Cables go where?????

[RedCentreBluey]

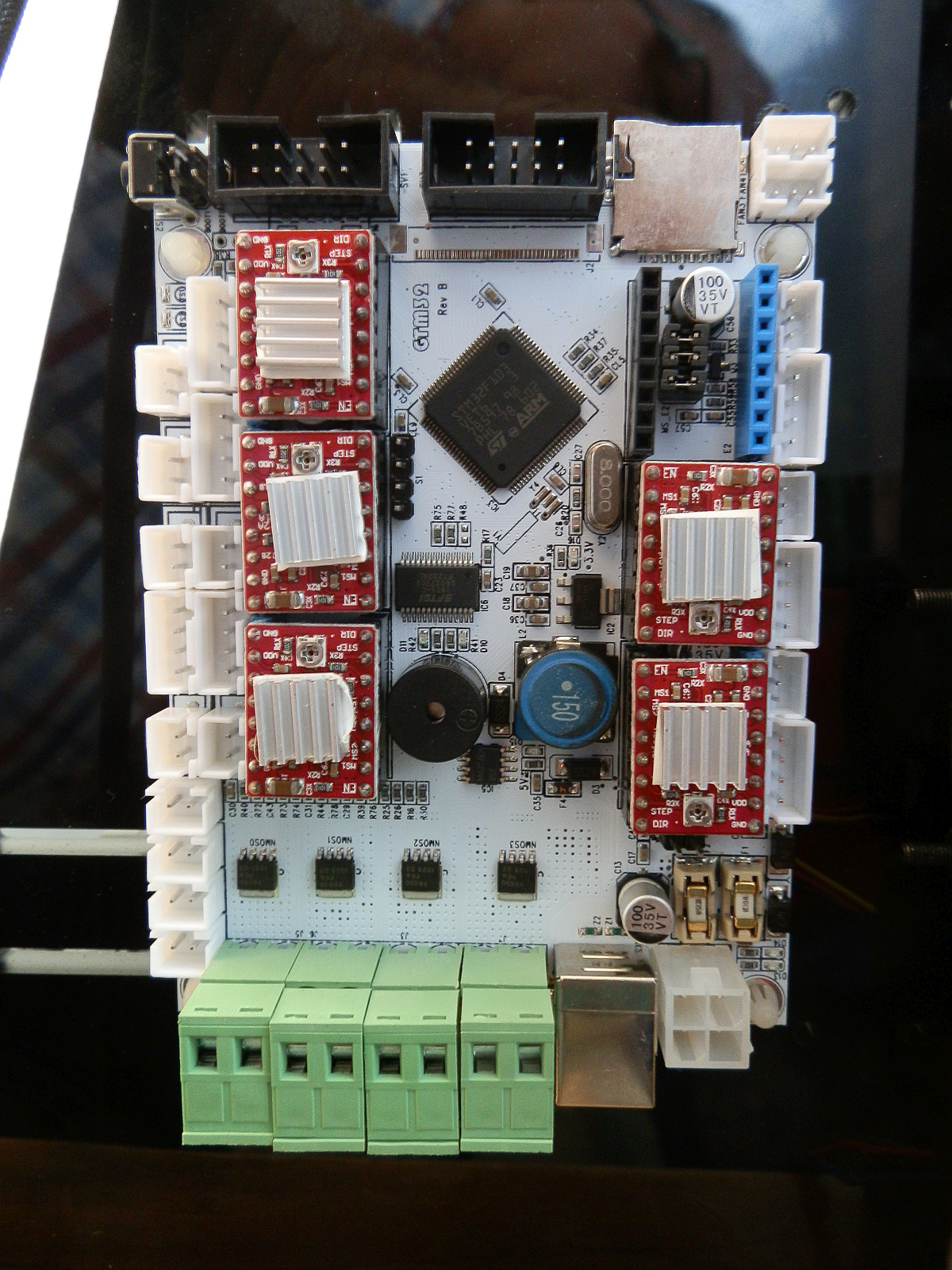

The board I got


[Newopint95]

It looks like the plugs and device locations have not changed. Just some of the electronic components.
http://www.geeetech.com/wiki/index.php/ ... wiring.jpg
