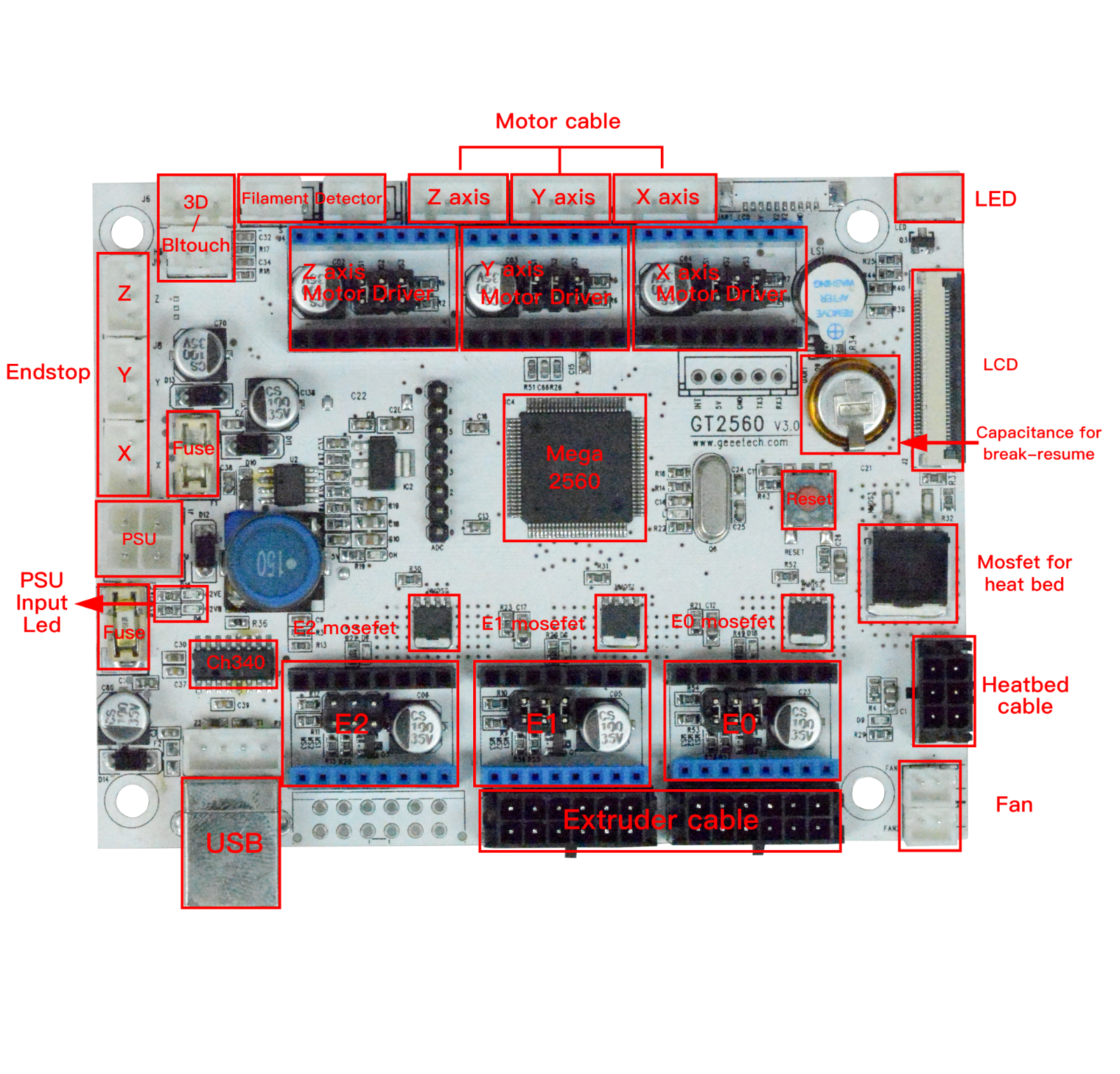

could someone tell me what is the function of the LED connector top right of the board
GT 2560 V3.0
GT 2560 V3.0
HI GEEETECHSTERS
could someone tell me what is the function of the LED connector top right of the board
could someone tell me what is the function of the LED connector top right of the board
- Attachments
-
- GT2560V3%20wires.png (2.64 MiB) Viewed 17368 times
Re: GT 2560 V3.0
Hello.
The functionality of each connector is defined by the firmware.
This controller board provides the possibility to connect LED lighting.
The functionality of each connector is defined by the firmware.
This controller board provides the possibility to connect LED lighting.
On the forum I help to use the rod, I don't give fish.
Geeetech Prusa I3 M201 Dual extruder Mixcolor 3D printer, bought 2017-12-19, already built, in the cognitive and improvement phase
Geeetech filament, ABS only
Geeetech 3D WiFi Module for 3D Printer, bought 2018-04-15, He got a new life, and still lies in a drawer.
Positively frenzied customer of Getech Technology.
Geeetech Prusa I3 M201 Dual extruder Mixcolor 3D printer, bought 2017-12-19, already built, in the cognitive and improvement phase
Geeetech filament, ABS only
Geeetech 3D WiFi Module for 3D Printer, bought 2018-04-15, He got a new life, and still lies in a drawer.
Positively frenzied customer of Getech Technology.
Re: GT 2560 V3.0
that is correct however i am unsure as to how much current this connection can hold, my be someone at Geeetech can advise...
Re: GT 2560 V3.0
I am not from Geeetech, but when you look into the GT2560 V3.0 schematic you can see the LED is directly connected to VDC and the drain of a MOSFET Q3. VDC (24V) is comming over the J1 connector and therefore from the powersupply. When you suck more than 10A from it the fuse F1 will burn. The MOSFET can hold up to 5A (datasheet AP2306AGN).
So i think a standard LED with a resistance component limiting the current to 20mA at 24V will be ok. In that case you have to be care about power loss (heat), because there is a lot of voltage to "destroy" by the restistance. When i calculate it with an online tool the power loss is nearly 500 mW. So to be save take a restistance which can withstand 1W. Or spend 20 times more money for a 24 V LED
Depending on the PWM5 signal the LED will be activated. The LED+restistance and the MOSFET will act like a voltage divider:
So i think a standard LED with a resistance component limiting the current to 20mA at 24V will be ok. In that case you have to be care about power loss (heat), because there is a lot of voltage to "destroy" by the restistance. When i calculate it with an online tool the power loss is nearly 500 mW. So to be save take a restistance which can withstand 1W. Or spend 20 times more money for a 24 V LED
Depending on the PWM5 signal the LED will be activated. The LED+restistance and the MOSFET will act like a voltage divider:
- No PWM -> MOSFET will become a high restistance -> nearly all the voltage will drop over the MOSFET.
- PWM on -> MOSFET will become a lower restistance -> voltage will drop more and more over LED+restistance
Re: GT 2560 V3.0
Hi.
Well done. I would not write a better answer myself.
Well done. I would not write a better answer myself.
On the forum I help to use the rod, I don't give fish.
Geeetech Prusa I3 M201 Dual extruder Mixcolor 3D printer, bought 2017-12-19, already built, in the cognitive and improvement phase
Geeetech filament, ABS only
Geeetech 3D WiFi Module for 3D Printer, bought 2018-04-15, He got a new life, and still lies in a drawer.
Positively frenzied customer of Getech Technology.
Geeetech Prusa I3 M201 Dual extruder Mixcolor 3D printer, bought 2017-12-19, already built, in the cognitive and improvement phase
Geeetech filament, ABS only
Geeetech 3D WiFi Module for 3D Printer, bought 2018-04-15, He got a new life, and still lies in a drawer.
Positively frenzied customer of Getech Technology.
Re: GT 2560 V3.0
What type of JST connector is used for the LED ?
I searched the geeetech wiki but i found nothing.
I searched the geeetech wiki but i found nothing.
Re: GT 2560 V3.0
Hi
JOINT TECH A2501WV-2P
However, I do not have this controller board and I am not able to verify this information.
In my opinion it is:Moscher wrote: Tue Feb 05, 2019 5:25 pm What type of JST connector is used for the LED ?
I searched the geeetech wiki but i found nothing.
JOINT TECH A2501WV-2P
However, I do not have this controller board and I am not able to verify this information.
On the forum I help to use the rod, I don't give fish.
Geeetech Prusa I3 M201 Dual extruder Mixcolor 3D printer, bought 2017-12-19, already built, in the cognitive and improvement phase
Geeetech filament, ABS only
Geeetech 3D WiFi Module for 3D Printer, bought 2018-04-15, He got a new life, and still lies in a drawer.
Positively frenzied customer of Getech Technology.
Geeetech Prusa I3 M201 Dual extruder Mixcolor 3D printer, bought 2017-12-19, already built, in the cognitive and improvement phase
Geeetech filament, ABS only
Geeetech 3D WiFi Module for 3D Printer, bought 2018-04-15, He got a new life, and still lies in a drawer.
Positively frenzied customer of Getech Technology.
Re: GT 2560 V3.0
Thx,
mmh i think i will solder some wires to the pins if no plug in my house will fit
mmh i think i will solder some wires to the pins if no plug in my house will fit
Re: GT 2560 V3.0
Hi
Thats a great diagram. But can you tell me which fuse is which ??
They both say fuse.
Thanks
Thats a great diagram. But can you tell me which fuse is which ??
They both say fuse.
Thanks
