Geeetech extruder Extension Board - Pinout?

[anjoku]

Hello,

I own a Geeetech A10 with the board GT2560 V3.0.
what is the pinout of the Geeetech extruder Extension Board for A20 A20M A30 A10 A10M?

https://www.geeetech.com/geeetech-extru ... -1042.html

I did not find any information.

Greeting,
Andre

[anjoku]

ok, thanks, that's not what i'm looking for.

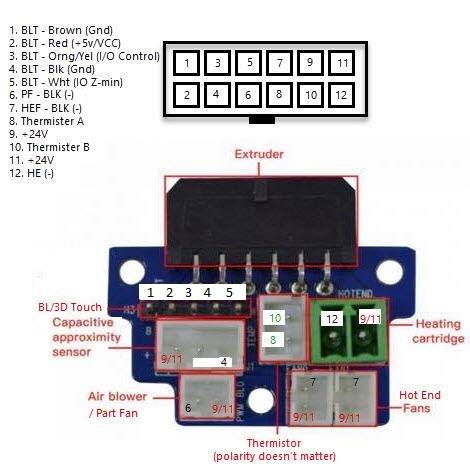

I'm looking for a description of how the connectors of this board are connected to the GT2560 V3.0. Especially the capacitive approximity sensor ...

[Simons]

Hi,

i would like to push this topic, because I have the same problem.

Maybe this would helf you.

[William]

Thanks for your share.
