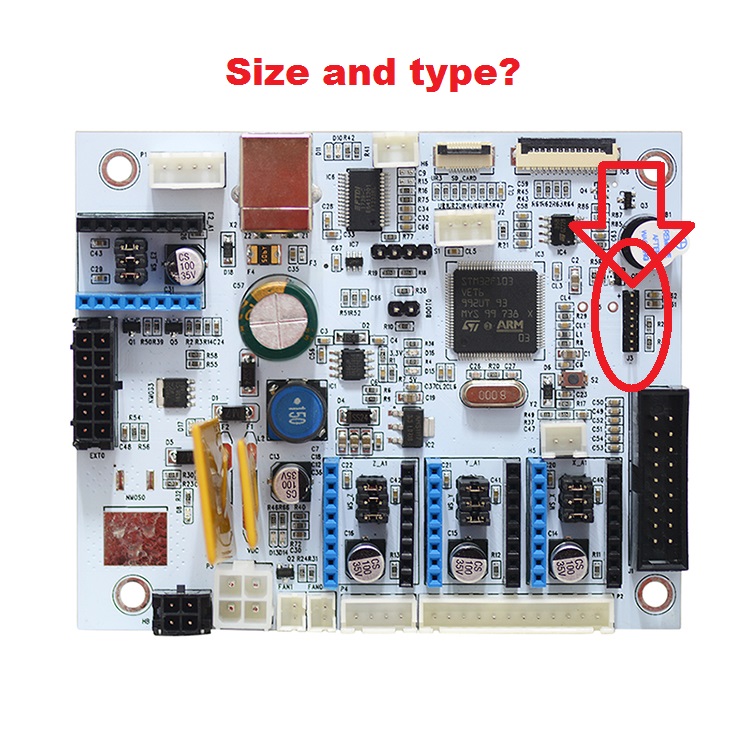

Could somebody tell me the name for the J3 "wifi" connector on GTM32 mini board (1x8 pin connector)
It´s not a regular pin connector, it´s smaller.
thanks
Connector type for J3 connector in main board?
Connector type for J3 connector in main board?
Last edited by apak on Wed Sep 19, 2018 4:25 pm, edited 1 time in total.
Re: Connector type for J3 connector in main board
This connector is smaller, and I am doing some test with ESP3D and work like to pin some cables there, and would not like to solder wires...
Could it be a JST-SH 1.0mm 8-Pin?
Could it be a JST-SH 1.0mm 8-Pin?
- Attachments
-
- GTM32-1 - copia.jpeg (220.42 KiB) Viewed 7873 times
Re: Connector type for J3 connector in main board?
Hi
Yes, it's a regular goldpin connector.
All you need to know about it is raster. In this case it is 1.27mm.
Yes, it's a regular goldpin connector.
All you need to know about it is raster. In this case it is 1.27mm.
On the forum I help to use the rod, I don't give fish.
Geeetech Prusa I3 M201 Dual extruder Mixcolor 3D printer, bought 2017-12-19, already built, in the cognitive and improvement phase
Geeetech filament, ABS only
Geeetech 3D WiFi Module for 3D Printer, bought 2018-04-15, He got a new life, and still lies in a drawer.
Positively frenzied customer of Getech Technology.
Geeetech Prusa I3 M201 Dual extruder Mixcolor 3D printer, bought 2017-12-19, already built, in the cognitive and improvement phase
Geeetech filament, ABS only
Geeetech 3D WiFi Module for 3D Printer, bought 2018-04-15, He got a new life, and still lies in a drawer.
Positively frenzied customer of Getech Technology.
Re: Connector type for J3 connector in main board?
Hi,
Any luck with this J3 connector and ESP3D?
If yes can tell me what are the pins to use?
Thanks
Any luck with this J3 connector and ESP3D?
If yes can tell me what are the pins to use?
Thanks
Re: Connector type for J3 connector in main board?
Hi.
You will find the answer by browsing the diagram of this electronic circuit.
It is available on GitHub GT.
You will find the answer by browsing the diagram of this electronic circuit.
It is available on GitHub GT.
On the forum I help to use the rod, I don't give fish.
Geeetech Prusa I3 M201 Dual extruder Mixcolor 3D printer, bought 2017-12-19, already built, in the cognitive and improvement phase
Geeetech filament, ABS only
Geeetech 3D WiFi Module for 3D Printer, bought 2018-04-15, He got a new life, and still lies in a drawer.
Positively frenzied customer of Getech Technology.
Geeetech Prusa I3 M201 Dual extruder Mixcolor 3D printer, bought 2017-12-19, already built, in the cognitive and improvement phase
Geeetech filament, ABS only
Geeetech 3D WiFi Module for 3D Printer, bought 2018-04-15, He got a new life, and still lies in a drawer.
Positively frenzied customer of Getech Technology.
Re: Connector type for J3 connector in main board?
proyect is stopped until working and stable source code is release on github....
manage to do it on and A20M, but it uses marlin and code is available, not so with smartto code...
manage to do it on and A20M, but it uses marlin and code is available, not so with smartto code...
